Shure ULXD4DGV=-G50 Dual Digital Wireless Receiver with Always On AES256 Encryption, Internal Power Supply, 1/2 Wave Antenna and Rack Mounting Hardware, 470-534 MHz

Dual-channel digital wireless receiver for use in demanding corporate, education, government, and performance environments. Wide 64 MHz tuning range, extensive antenna and spectrum options, and always-on AES-256 encryption.

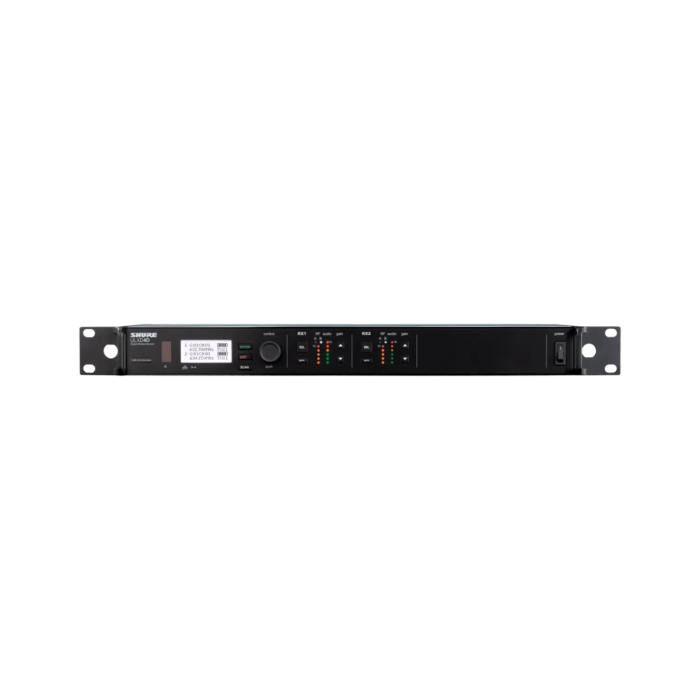

The Shure ULXD4D-GV is a dual-channel networkable wireless receiver for use with ULX-D® Digital Wireless Systems.

With 24-bit / 48 kHz digital audio for pristine sound quality, efficient RF transmission for maximum channel capacity in crowded spectrum, and always-on AES-256 encryption to protect confidential content, ULX-D delivers uncompromising wireless for the most demanding environments.

Features

• Two receivers in a rugged 1RU metal chassis with internal power supply
• Dante™ digital networked audio over Ethernet
• Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
• Individual gain controls, LED meters, and XLR outputs for each channel
• Up to 64 MHz tuning range (region dependent)
• Digital predictive switching diversity
• High Density mode allows higher channel counts at distances up to 100 ft / 30 m
• Optimized scanning finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
• Always-on AES-256 encryption for enhanced privacy in confidential settings
• Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® integration, and AMX/Crestron control
• Yamaha® device ID allows simplified channel patching on CL consoles ("YAMAHA" is a registered trademark of Yamaha Corporation)
• Remote-mountable ½ wave antennas included
• Frequency Band - G50

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Audio & RF
- Frequency Band: G50 (470–534 MHz)
- Tuning Range: Up to 64 MHz
- Frequency Response: 20 Hz to 20 kHz
- Latency: < 2.9 ms
- Audio Quality: 24-bit / 48 kHz
- Encryption: AES-256 (Always On)
- Max Channel Count (High Density Mode): Up to 47 per 6 MHz TV band
- Diversity: Digital Predictive Switching Diversity

Inputs/Outputs
- Analog Outputs: 2x XLR 3-pin (one per channel)
- Dante Digital Output: 1x RJ45 (Dante-enabled)
- Network Port: 1x RJ45 Ethernet (10/100 Mbps)

Power & Construction
- Power Supply: 100–240 VAC internal power supply
- Housing: Rugged all-metal 1RU chassis
- Mounting: Rackmountable (hardware included)

Antennas
- Included: 2x ½-wave antennas (remote-mountable)
- Antenna Connectors: BNC

Control & Compatibility
- Remote Software: Wireless Workbench®, ShurePlus™ Channels
- Integration: AMX, Crestron, Yamaha CL/QL consoles
- Device Discovery: Shure control protocol and Dante networking

Dimensions & Weight
- Height: 1.75 in (44 mm)
- Width: 19 in (483 mm)
- Depth: 10 in (254 mm)
- Weight: 7.2 lbs (3.27 kg)
