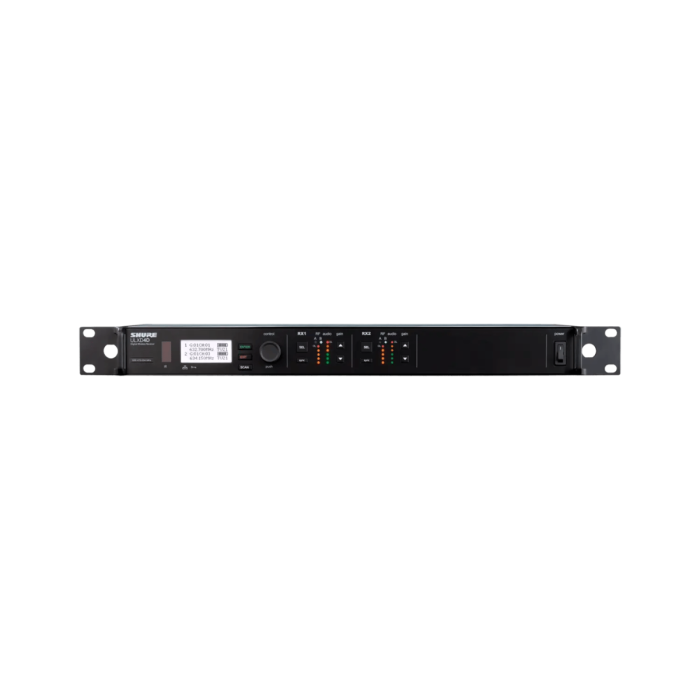

Shure ULXD4DGV=-J50A Dual Digital Wireless Receiver with Always On AES256 Encryption, Internal Power Supply, 1/2 Wave Antenna and Rack Mounting Hardware, 572-620 MHz

Dual-channel digital wireless receiver for use in demanding corporate, education, government, and performance environments. Wide 64 MHz tuning range, extensive antenna and spectrum options, and always-on AES-256 encryption.

The Shure ULXD4D-GV is a dual-channel networkable wireless receiver for use with ULX-D® Digital Wireless Systems.

With 24-bit / 48 kHz digital audio for pristine sound quality, efficient RF transmission for maximum channel capacity in crowded spectrum, and always-on AES-256 encryption to protect confidential content, ULX-D delivers uncompromising wireless for the most demanding environments.

Features

• Two receivers in a rugged 1RU metal chassis with internal power supply
• Dante™ digital networked audio over Ethernet
• Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
• Individual gain controls, LED meters, and XLR outputs for each channel
• Up to 64 MHz tuning range (region dependent)
• Digital predictive switching diversity
• High Density mode allows higher channel counts at distances up to 100 ft / 30 m
• Optimized scanning finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
• Always-on AES-256 encryption for enhanced privacy in confidential settings
• Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® integration, and AMX/Crestron control
• Yamaha® device ID allows simplified channel patching on CL consoles ("YAMAHA" is a registered trademark of Yamaha Corporation)
• Remote-mountable ½ wave antennas included
• Frequency Band - J50A

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

RF & Audio Performance
- Frequency Band: J50A (572–620 MHz)
- Tuning Range: Up to 64 MHz (region dependent)
- Latency: < 2.9 ms
- Audio Quality: 24-bit / 48 kHz digital
- Frequency Response: 20 Hz to 20 kHz
- Encryption: AES-256 (Always On)
- Channel Count (High Density Mode): Up to 47 per 6 MHz band
- Diversity Type: Digital Predictive Switching

Inputs/Outputs
- Analog Outputs: 2x XLR 3-pin (independent per channel)
- Dante Digital Output: 1x RJ45 (Dante-enabled)
- Ethernet Port: 1x RJ45 (10/100 Mbps)

Antenna & Connectivity
- Antenna Connectors: 2x BNC (rear panel)
- Included Antennas: 2x ½-wave antennas (remote mountable)
- Network Control: Wireless Workbench®, ShurePlus Channels, AMX/Crestron
- Device Discovery: Supports Yamaha CL/QL consoles

Power & Housing
- Power Supply: Internal (100–240 VAC)
- Chassis: Rugged metal, 1RU
- Mounting: Rackmount hardware included

Physical
- Dimensions (HxWxD): 1.75 x 19 x 10 in (44 x 483 x 254 mm)
- Weight: 7.2 lbs (3.27 kg)

In the Box
- Shure ULXD4DGV Dual-Channel Receiver (J50A Band)
- 2x ½ Wave Antennas
- Rackmount Kit
- Power Cable
- Quick Start Guide
