Universal Audio UA-6176 Vintage Channel Strip TGF33

Mint, Perfect, Open Box with Full Universal Audio Warranty

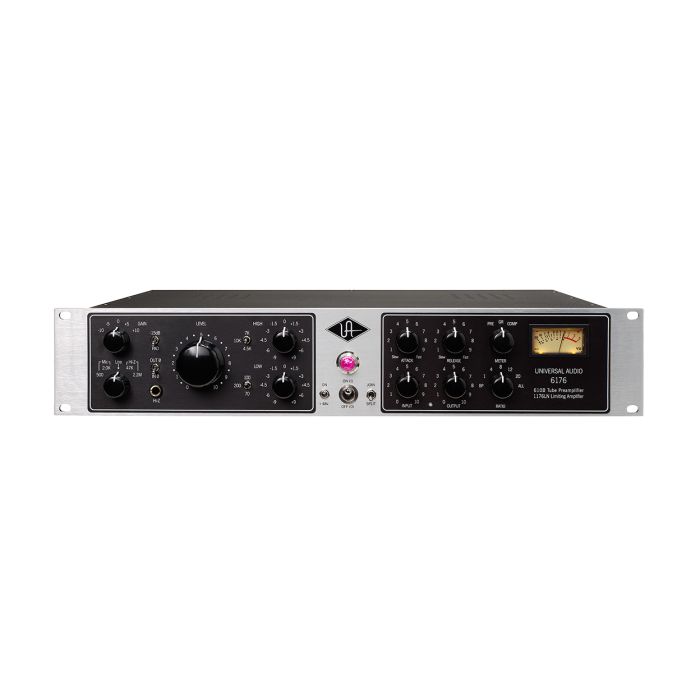

Universal Audio 6176 Vintage Channel Strip
The UA 6176 combines two of Universal Audio’s most iconic designs: the all-tube 610 mic preamp, famously used on recordings from Frank Sinatra to Van Halen, and the 1176LN FET compressor, one of the most loved compressors in recording history. Together, they create the ultimate channel strip — smooth tube warmth, fast dynamic control, and unmistakable vintage tone.

Beloved by engineers and artists including Vance Powell, Joe Chiccarelli, Chris Martin (Coldplay), Norah Jones, and Wyclef Jean, the 6176 remains a studio mainstay thanks to its musicality and flexibility. Its “Split/Join” switch allows you to route the preamp and compressor independently or in series, giving you unmatched control.

Features

• All-tube 610 mic preamp, based on Bill Putnam’s legendary console design
• Classic 1176LN Class A FET compressor section
• “Split” or “Join” switch for independent or series operation
• High and low frequency shelving EQ
• Variable impedance input with selectable gain and output controls
• Mic, balanced Line, and Hi-Z inputs for flexible tracking
• Ultra-quiet operation with premium circuitry
• Stereo interconnection available via 1176-SA accessory
• Hand-built in the USA; includes 1-year limited warranty

Specifications

Preamp Section
- Mic Input Impedance: Selectable 500 Ω or 2k Ω
- Line Input Impedance: 20k Ω balanced
- Hi-Z Input Impedance: Selectable 2.2 MΩ or 47 kΩ
- Max Mic Input Level: +18 dBu (2k Ω input, -15 dB pad engaged)
- Max Output Level: +20 dBm
- Internal Output Impedance: 80 Ω
- Recommended Load: 600 Ω
- Frequency Response: 20 Hz – 20 kHz (+0, -1 dB)
- Maximum Gain: 65 dB (500 Ω input impedance)
- Signal-to-Noise Ratio: > 90 dB (@ maximum gain)

Compressor Section (1176LN)
- Input Impedance: Selectable 15k Ω or 600 Ω
- Output Load Impedance: 600 Ω floating
- Frequency Response: 20 Hz – 20 kHz (±1 dB)
- Gain: 40 dB (±1 dB)
- Distortion: <0.5% THD (50 Hz–15 kHz, limiting, +22 dBm output)
- Signal-to-Noise Ratio: > 75 dB
- Attack Time: 20 – 800 microseconds (adjustable)
- Release Time: 50 ms – 1.1 s (adjustable)
- Stereo Linking: Yes (with 1176-SA accessory)

General
- Tube Complement: (1) 12AX7A, (1) 12AT7A
- Power: 115/230 V (switchable), IEC cable
- Fuse: 400 mA slow blow (115 V) / 200 mA slow blow (230 V)
- Indicator: 28 V lamp (type 1819)
- Dimensions: 19" rackmount, 2U (9" W × 3.5" H × 12.25" D)
- Weight: 12 lb (5.4 kg)
