Universal Audio UA-710TF Twin-Finity Mic Preamplifier TGF33

Mint, Perfect, Open Box with Full Universal Audio Warranty

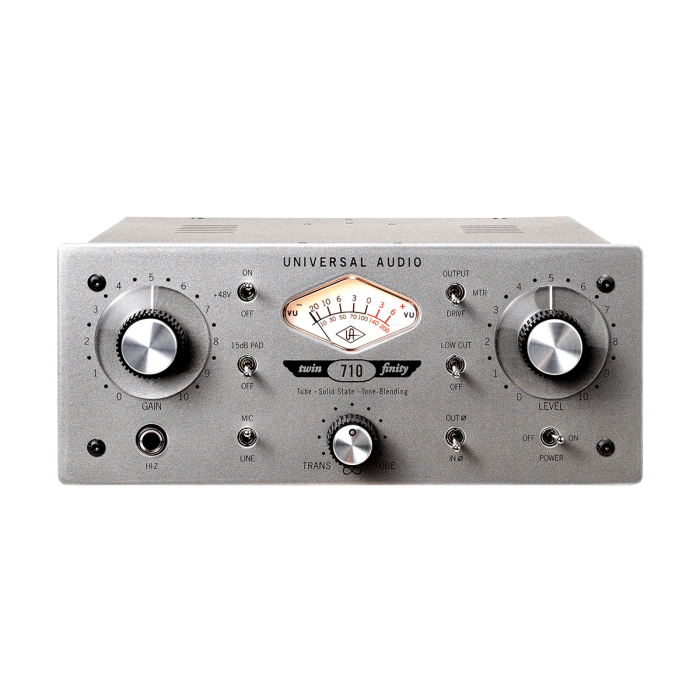

Universal Audio 710 Twin-Finity™ Mic/Line Preamp & DI
The award-winning UA 710 Twin-Finity™ delivers the warmth of tubes and the clarity of solid-state in one versatile half-rack preamp. With continuously variable tone-blending between the 310V Class-A tube stage and solid-state transimpedance stage, the 710 lets you dial in anything from creamy saturation to crisp punch. Dual gain-stage controls and a unique VU “Drive” mode allow you to shape harmonic richness like a guitar amp, while its compact, rack-mountable design makes it a perfect studio or stage companion.

Features

• Twin-Finity™ tone-blending mic/line preamp and Hi-Z DI
• Continuously variable tube/solid-state blending control
• Dual gain stages for clean, creamy, or crunchy tones
• Discrete JFET DI with ultra Hi-Z 2.2MΩ input impedance
• +48V phantom power, -15 dB pad, phase invert, and 75 Hz low-cut filter
• Balanced XLR mic/line input and output connections
• Front-panel Hi-Z instrument input with auto source switching
• Large backlit VU meter with “Drive” mode for input monitoring
• Heavy-duty metal construction; portable half-rack or rackmount (kit included)
• Universal internal power supply

Specifications

Inputs
- Mic Input: XLR (female), 2kΩ impedance
- Line Input: XLR (female), 10kΩ impedance
- Hi-Z Input: ¼" jack (front), 2.2MΩ impedance

Outputs
- Line Output: XLR (male), 600Ω impedance

Performance
- Gain Range: -∞ to +70 dB
- Mic Gain: +10 to +60 dB
- Line Gain: -10 to +40 dB
- Hi-Z Gain: -10 to +40 dB
- Frequency Response: 20 Hz – 100 kHz (±0.2 dB)
- THD+N: 0.1% (tube), 0.005% (solid-state)
- Maximum Mic Input Level: +18 dBu (with pad)
- Max Output Level: +20 dBm
- S/N Ratio: >90 dB

Other Controls
- Pad: -15 dB
- High-Pass Filter: 75 Hz
- Phantom Power: +48V
- Phase Reverse: Yes

General
- Tube Complement: 12AX7
- Power: 100–240 VAC, 20W max
- Dimensions: 8.45" W × 3.5" H × 10.25" D (half-rack, 2U height)
- Weight: 5.25 lb (2.4 kg)
