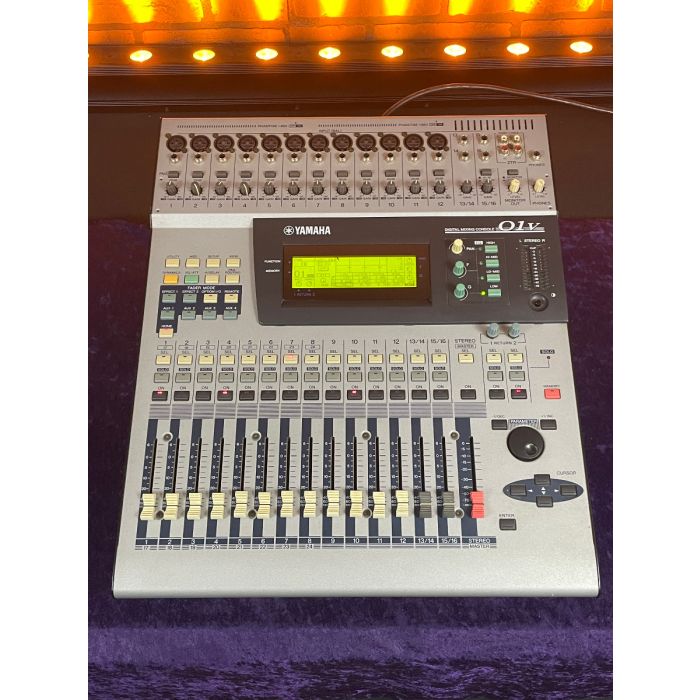

Yamaha 01V 16 Channel Digital Audio Console, 2000's w/ Hard Case SN0723

Authorized dealer

Super Fast Same Day Shipping

Overall Great Condition. Tested and Working as Intended. Includes Hard Travel Case.

The Yamaha 01V is a digital mixer, often chosen by those upgrading from analog consoles. It's designed with a 19-inch rackmount frame and offers 18 analog inputs, up to 10 digital inputs, 10 digital outputs, and 10 analog outputs. Key features include a versatile signal path with EQ, dynamics processing, and delay, as well as internal effects processors.
Here's a more detailed breakdown:
Inputs & Outputs:
Analog Inputs: 16 TRS/XLR combo jacks, with +48V phantom power on 12 channels.
Digital Inputs: Up to 10, with options for ADAT, TASCAM, or AES/EBU formats.
Analog Outputs: 4 freely assignable outputs, with options for expansion.
Digital Outputs: 8 assignable digital outputs or expansion options.
Stereo Output: Balanced XLR stereo outputs.
Digital I/O: 24-bit ADAT and SPDIF (IEC-60958).
Signal Processing:
EQ: 120 bands of EQ, with 4-band parametric EQ on all main input and output channels.
Dynamics: 22 dynamics processors for individual channels and aux sends.
Internal Effects: 2 internal stereo multi-effects processors with effects like reverb, delay, chorus, and distortion.
Input/Output Delays: Up to 250ms input delay and up to 300ms output delay.
Other Features:
Sampling Frequency: Internal: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz.
Faders: 17 x 100mm motorized faders.
Scene Memories: 99 scene memories.
Connectivity: USB (type B connector), MIDI in, out, and thru.
Effects Libraries: 44 preset and 76 user locations for effects.
Compressor Libraries: 36 preset and 92 user locations for compressors.
Additional Information:
The 01V96, a later version, offers 24-bit/96kHz operation and improved studio-quality head amps.
The 01V96 also features a Mini-YGDAI expansion slot for adding more I/O.
The 01V96i is an updated version with USB 2.0 for live audio streaming and multitrack recording.
