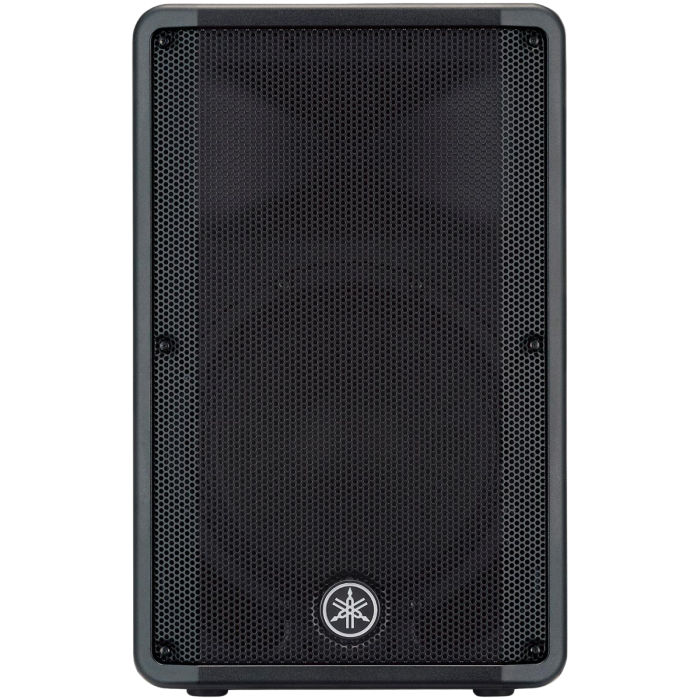

Yamaha DBR Series DBR12 Powered Speaker

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level.

Each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

Features

• 1000W Class-D bi-amplified power for room-filling sound at 131 dB SPL
• 12" woofer with 2" voice coil and 1.4" compression driver for clean lows and articulate highs
• Onboard 2-channel mixer with combo XLR/TRS and RCA inputs
• Selectable CH1+2 MIX or CH1 THRU output modes
• Optimized 50° wedge design for floor monitoring
• Lightweight plastic cabinet with pole mount and rigging options
• Ideal for front-of-house PA, stage monitoring, or installations

Power
The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics. The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

Internal Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer

Specifications

General
- Model: DBR12
- Speaker Type: 2-Way, Bi-Amp Powered, Bass-Reflex
- Cabinet Material: High-impact plastic with steel grille
- Mounting Options: 35mm pole socket, rigging points, floor wedge
- Weight: 34.8 lbs (15.8 kg)

Power Output
- Dynamic Power: 1000W (LF: 800W / HF: 200W)
- Continuous Power: 465W (LF: 400W / HF: 65W)
- Max SPL: 131 dB

Drivers
- LF Driver: 12" cone, 2" voice coil, ferrite magnet
- HF Driver: 1.4" diaphragm compression driver, 1" throat, ferrite magnet
- Frequency Range: 52Hz – 20kHz

Inputs & Mixer
- CH1: Combo XLR/TRS – Mic or Line Level
- CH2: Combo XLR/TRS + RCA Stereo Line Input
- Output: XLR – Selectable CH1 THRU or CH1+2 MIX
- Internal Mixer: 2-channel

Other
- DSP Processing: FIR-X Tuning, D-CONTOUR EQ
- Cooling: 4-speed fan
- Finish: Black
- Dimensions (W x H x D): 14.8" x 23.7" x 13.7" (376 x 601 x 348 mm)
- Power Consumption: 74W (1/8 power), 18W (idle)
- Accessories: Power Cable (standard IEC)
