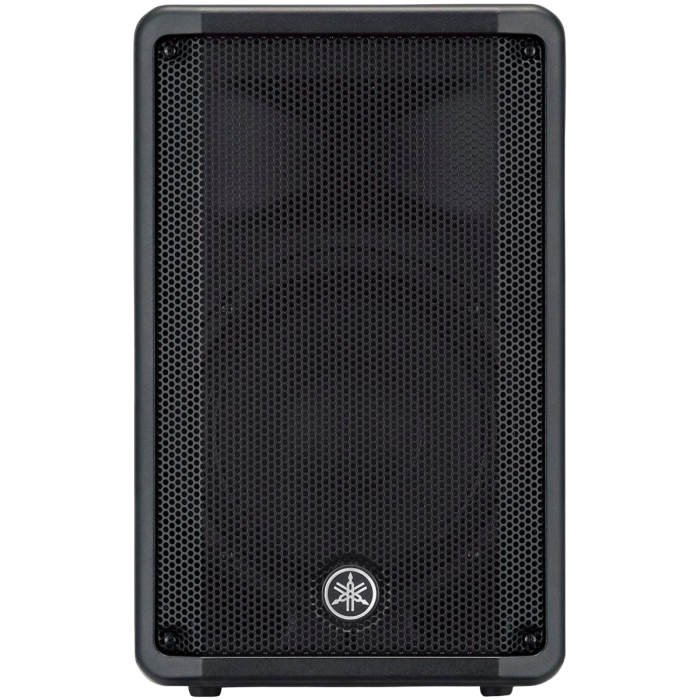

Yamaha DBR10 700W 10'' Powered Speaker

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level.



Each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

Features

• 700W dynamic Class-D power amp (325W continuous) for stunning sound pressure up to 129dB SPL
• 10" woofer and 1" compression driver for full-range clarity across 55Hz–20kHz
• 2-channel onboard mixer with mic/line inputs and RCA stereo input
• Smart cabinet design supports FOH, floor monitor, or rigged applications
• 50° wedge angle for effective stage monitoring
• Rugged, lightweight enclosure ideal for travel and quick setups
• Ideal for solo performers, DJs, small venues, and mobile PA setups

Power
The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700 W of power, achieving an SPL of 129dB, delivered with remarkable clarity and dynamic characteristics. The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.0" precision compression driver* produces accurate mid-range and high frequencies.



Internal Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Specifications

General
- Model: DBR10
- Speaker Type: 2-Way, Bi-Amp Powered, Bass-Reflex
- Enclosure: Durable plastic cabinet with 50° wedge monitor angle
- Mounting Options: Pole-mountable, floor wedge, or rigging
- Weight: 23.2 lbs (10.5 kg)

Power Output
- Dynamic Power: 700W (LF: 500W, HF: 200W)
- Continuous Power: 325W (LF: 260W, HF: 65W)
- Maximum SPL: 129 dB SPL

Drivers
- LF Driver: 10" cone, 2" voice coil, ferrite magnet
- HF Driver: 1.0" diaphragm, 1" throat compression driver, ferrite magnet
- Frequency Range: 55Hz – 20kHz

Mixer & Inputs
- Input Channels: 2
- CH1: Combo XLR/TRS (Mic/Line input)
- CH2: Combo XLR/TRS + RCA stereo
- Output: CH1 THRU or CH1+2 MIX via XLR
- Controls: Input gain knobs, output selector switch

Other
- Cooling: Convection
- Finish: Black
- Included Accessories: Power cable
