Yamaha DMR6 Dtx-Pro Module And Rs6 Rack System For The Dtx6K2-X And Dtx6K3-X

The Yamaha DMR6 is the ultimate foundation for drummers looking to build a personalized electronic drum setup with pro-level power and flexibility. Whether you're upgrading from a DTX6K2X kit or crafting your own custom configuration, this bundle gives you everything you need to start strong—with the exceptional DTX-PRO sound module and the sturdy, adaptable RS6 rack system. Featuring 14 trigger inputs, advanced sound design tools, Bluetooth capability, and a built-in training suite, this versatile system is ready to adapt to your playing style and grow with your setup.

Note: This bundle includes the DTX-PRO drum module and RS6 rack system only. Drum pads, cymbals, pedals, and additional stands are sold separately.

Features

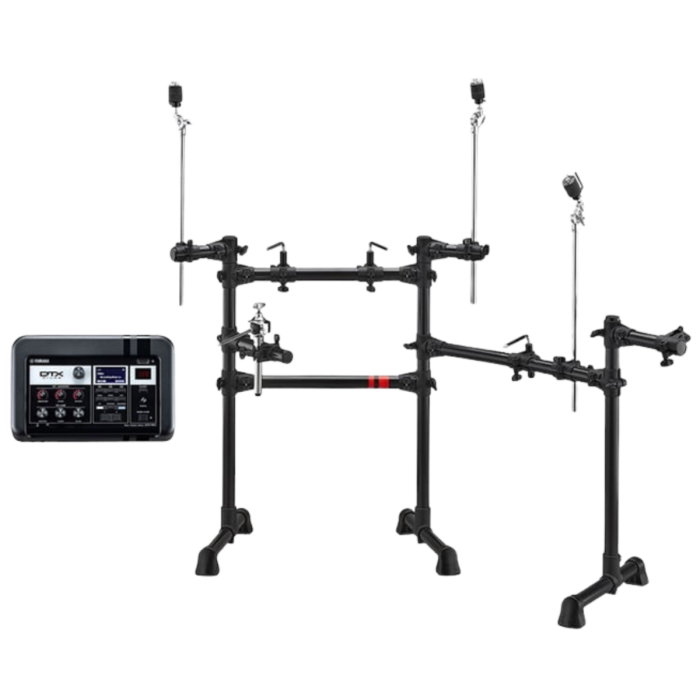

• Includes Yamaha DTX-PRO module and RS6 rack system
• 14 trigger inputs for pads and cymbals (sold separately)
• Over 700 high-quality drum and percussion sounds
• 270 preset kits and deep effect processing
• Kit Modifier knobs: Ambience, Compression, and Effects
• RS6 rack with L-shaped legs for stable and open positioning
• Ball-and-clamp snare mount for ergonomic playing
• Boom arms included for flexible cymbal placement
• Bluetooth streaming, WAV sample import, and built-in recorder
• Ideal for drummers replacing hardware or building a custom kit

Specifications

Tone Generator
- Type: AWM2
- Maximum Polyphony: 256 notes
- Instrument Effects: EQ, Compressor, Transient, Insertion
- Kit Effects: Ambience, Effect 1, Effect 2
- Master Effects: Master Comp, Master EQ, Phones EQ

Kits & Sounds
- Preset Kits: 70+
- User Kits: 200
- Drum/Percussion Sounds: 733

Metronome
- User Click Sets: 30
- Tempo Range: 30–300 BPM
- Time Signatures: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
- Subdivisions: Accents, quarter, eighth, sixteenth, triplets
- Additional Features: Individual click volume, WAV import, timer

Training
- Modes: 10
- Preset Songs: 37
- User Songs: 1

Audio File Support
- Format: WAV
- Max Files: 1,000
Max Sample Time:
- Mono (44.1kHz, 16-bit): 50 min 40 sec
- Stereo (44.1kHz, 16-bit): 25 min 20 sec

Recording
Max Recording Time:
- Internal Memory: 90 seconds
- USB Drive: 90 minutes per file
- Format: WAV (44.1kHz, 16-bit, stereo)

Display
- Full Dot LCD (128×64 dot)

Connectivity
- DC In: 12V
- Headphones: 1/4" (6.35 mm) stereo
- Aux In: 1/4" (6.3 mm), 1/8" (3.5 mm), or Bluetooth
- Stereo Outputs: 2 x 1/4" TS (L/Mono, R)
- Individual Outputs: 4 x 1/4" TRS
- USB to Device & USB to Host
- MIDI: 5-pin DIN Out
- Trigger Inputs: 10 x 1/4" TRS (up to 14 pads with Y-cables)

Bluetooth
- Version: 4.1
- Supported Profile: A2DP
- Codec: SBC
- Max Distance: 32.8 ft / 10 m
- RF Range: 2402–2480 MHz
- Max Output Power: +4 dBm
- Modulation: GFSK, π/4 DQPSK, 8DPSK

Power & Dimensions
- Power Supply: 12V DC, 1.5A
- Module Dimensions (W x H x D): 13.5" x 7.7" x 2.6" (34.2 x 19.6 x 6.6 cm)
- Module Weight: 4.4 lbs (2 kg)
- Package Weight: 49.5 lbs
- Box Dimensions: 36.65" x 35.5" x 9.5"
