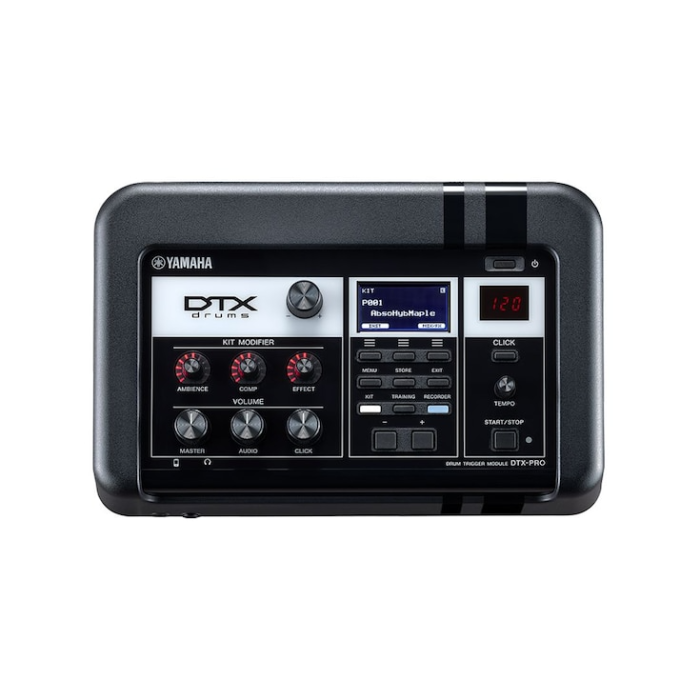

Yamaha DTX-PRO Electronic Drum Sound Module
The Yamaha DTX-PRO is a next-generation drum sound module designed to inspire creativity, with a focus on high-quality sound, intuitive control, and professional features. It captures the authentic tones and ambience of drums recorded in world-renowned studios, offering drummers an expressive, dynamic playing experience.

With the innovative KIT MODIFIER knobs (Ambience, Compression, and Effect), you can instantly reshape your sound, from intimate and dry to massive and spacious. The DTX-PRO also integrates seamlessly with Yamaha’s Rec’n’Share app for recording, editing, and sharing performances, and comes equipped with extensive training functions, onboard effects, and professional connectivity.

Features

• High-grade drum sound module with authentic, studio-recorded samples
• KIT MODIFIER knobs for instant control of Ambience, Compression, and Effects
• 40 preset kits and 200 user kits for versatile performance setups
• 712 voices including acoustic drums, percussion, and electronic sounds
• 256-note polyphony for natural, expressive playing
• Built-in training tools: programmable metronome, 10 training modes, and 37 preset songs
• WAV sample import and onboard recording capability
• USB audio/MIDI interface for DAW integration
• Compatible with Yamaha Rec’n’Share app for easy recording and sharing
• Includes Cubase AI music production software
• Lightweight and compact for easy integration into any drum setup

Specifications

General
- Model: DTX-PRO
- Preset Kits: 40
- User Kits: 200
- Voices: 712
- Maximum Polyphony: 256 notes

Effects
- Per Instrument: EQ, Compression, Transient, Insertion*
- Per Kit: Ambience, Effect 1, Effect 2, Master Comp, Master Effect
- Overall: Master EQ, Phones EQ
(*Insertion effects available only for specific instruments)

Click & Tempo
- Click Sets: 30
- Tempo Range: 30–300 BPM, Tap Tempo supported
- Time Signatures: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
- Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, eighth-note triplets
- Other: Individual click volume control, WAV import, timer

Training
- Types: 10 modes
- Preset Songs: 37
- User Songs: 1

Audio Files
- Import Limit: 1,000 files
- Max Loadable Sample Time: 760 sec (mono, 44.1 kHz/16-bit), 380 sec (stereo)
- Format: WAV

Recorder
- Internal Memory: Max 90 sec
- USB Flash Drive: Max 90 min per file
- Format: WAV (44.1 kHz, 16-bit, stereo)

Dimensions & Weight
- Width: 303 mm (11-15/16")
- Height: 196 mm (7-11/16")
- Depth: 66 mm (2-5/8")
- Weight: 1.5 kg (3 lb 5 oz)

Connectivity
- DC IN: +12V
- Headphones: Standard stereo phone jack ×1
- AUX IN: Stereo mini jack ×1
- Output: L/MONO, R (standard phone jacks)
- USB: TO DEVICE, TO HOST
- MIDI: OUT
- Trigger Inputs: Up to 14 pads (via stereo inputs/Y-cable)
- Display: Full Dot LCD (128×64)

Included Accessories
- AC adapter (PA-150 or equivalent)
- Owner’s Manual
- Module holder & wing bolts (×4)
- Cubase AI download information (availability varies by region)
