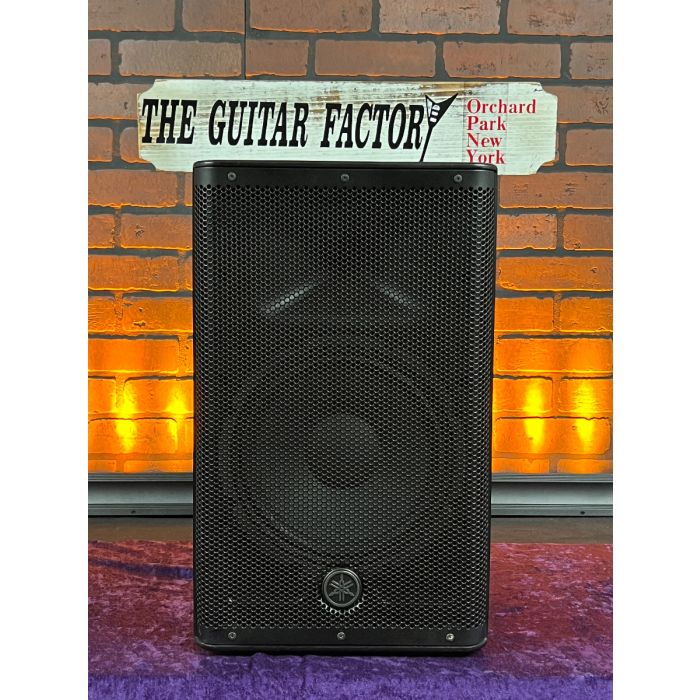

Yamaha DXR10MKII 10" 2-Way Powered Loudspeaker w/ Yamaha Cover SN1099
PRE-OWNED
Authorized Dealer
Super Fast Same Day Shipping
Overall Excellent Condition with a Yamaha Travel Cover. Looks, Works, and Sound Amazing!! Includes power cable.
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again, our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.
Specs
Speaker type
10" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)
56Hz - 20kHz
Nominal coverage
H 90°
V 60°
Components
LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Crossover
FIR-X tuning™ (linear phase FIR filter)
Output power
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis)
132dB SPL
I/O connectors
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements
100V - 240V, 50Hz/60Hz
Power consumption
90W
Flying and mounting hardware
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket
35mm with 2-way features (0 or 7 degrees)
Dimensions
W 305mm (12")
H 502mm (19 6/8")
D 310mm (12 2/8")
Net weight
13.9kg (30.6lbs)
