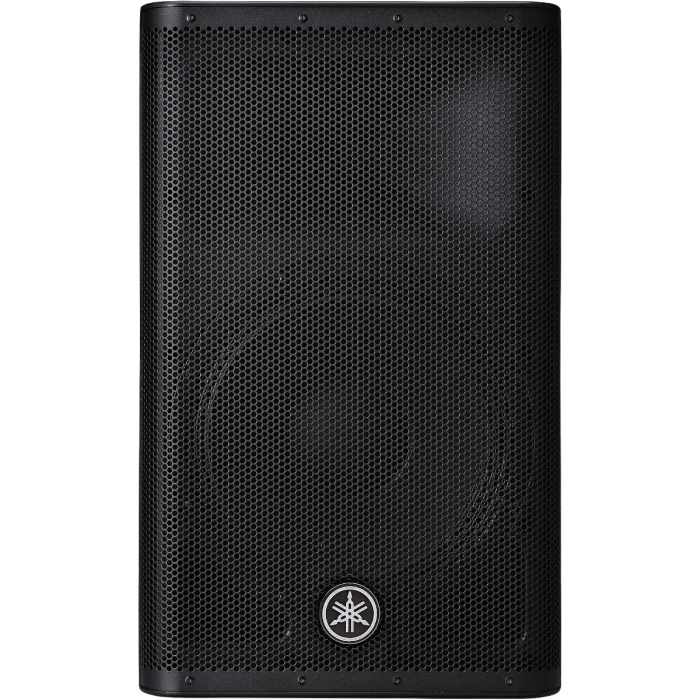

Yamaha DXR12MKII 2-way Active Powered Speaker Monitor

Yamaha DXR12MKI Powered Loudspeaker – 1100W of Crystal-Clear Power and Versatile Control

Built for demanding live sound applications, the Yamaha DXR12MKI delivers an incredible 134dB SPL output with remarkable detail and dynamic response. With 1100W of Class-D power, precision digital processing, and a built-in 3-channel mixer, the DXR12MKI is a true workhorse for performers, DJs, and professional audio engineers alike. Whether you're flying it, mounting it on a pole, or using it as a floor wedge, this speaker provides the high-resolution sound and reliability Yamaha is known for.

Features

• 1100W Class-D bi-amplified power (950W LF / 150W HF)
• 12" woofer and 1.75" neodymium compression driver for full-range clarity
• Delivers up to 134 dB SPL for clean, powerful performance
• Built-in 3-channel mixer with mic, line, and stereo RCA inputs
• Advanced DSP with D-Contour compression and 100Hz/120Hz high-pass filter
• Lightweight yet rugged ABS cabinet for touring or installed sound
• Versatile for FOH, monitors, or flown configurations

Specifications

General
- Model: DXR12MKI
- Speaker Type: 2-Way, Bi-Amp Powered
- Cabinet Material: ABS Plastic
- Mounting Options: Pole mount, floor wedge, fly points
- Weight: 41 lbs (18.6 kg)

Power Output
- Total Output: 1100W Class-D (LF: 950W / HF: 150W)
- Max SPL: 134 dB

Drivers
- LF Driver: 12" woofer
- HF Driver: 1.75" neodymium compression driver
- Frequency Range: 52Hz – 20kHz
- Crossover Frequency: 2100 Hz

Mixer & Inputs
- Channel 1: XLR input (Mic/Line)
- Channel 2: 2 x 1/4" TS (L/Mono, R)
- Channel 3: Dual RCA stereo input

Outputs:
- 1 x XLR Link Out
- 1 x XLR Thru
- Onboard Mixer: 3-channel with individual control
- Signal Processing: D-Contour multi-band compression, high-pass filter (100Hz/120Hz)

Other
- Horizontal Coverage: 90°
- Vertical Coverage: 60°
- Power Source: Standard IEC AC cable
- Dimensions (H x W x D): 23.6" x 14.25" x 13.75"
- Accessories: Power Cable
