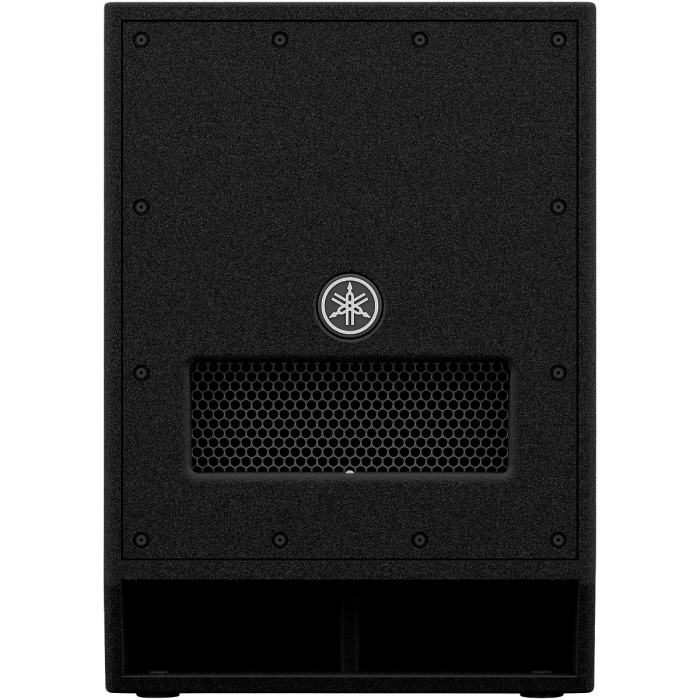

Yamaha DXS12MKII 12'' Powered Subwoofer

The Yamaha DXS12mkII is an upgrade from the DXS12 subwoofer that adds flexibility and boosts performance. The DXS12mkII subwoofer provides a more professional edge for fixed or mobile live performances and events that demand prominent and powerful bass in small to medium-sized environments.

Utilizing D-XSUB DSP processing, higher output and improved frequency response in a small, lightweight enclosure is possible. With higher maximum SPL, extended low frequency range, and all the clarity and punch you've come to expect from the DXS Series, you can rest easy that the DXS12mkII has all your bass covered.

Features

• 1020W Class-D amplifier (800W continuous) with precision damping for tight low-end control
• Powerful 12" LF woofer with 2.5" voice coil in a rugged band-pass enclosure
• Delivers up to 134 dB SPL with extended bass down to 42Hz
• D-XSUB DSP with three modes: NORMAL, BOOST, and XTENDED LF for tailored low-end response
• Selectable crossover points: 80Hz, 100Hz, 120Hz
• Cardioid mode for better stage-side sound control when using multiple subs
• Two pole mount options: 35mm and M20
• Compact yet tour-tough plywood cabinet

Specifications

General
- Model: DXS12mkII
- Type: Active Powered Subwoofer
- Configuration: Band-Pass Enclosure
- Cabinet Material: Precision-engineered plywood
- Weight: 66.1 lbs (30 kg)

Power
- Amplifier Class: Class-D
- Total Output: 1020W peak / 800W continuous
- Maximum SPL: 134 dB SPL

Speaker
- LF Driver: 12" woofer with 2.5" voice coil
- Frequency Response: 42Hz – 150Hz
- Coverage Pattern: Omnidirectional

Inputs
- 2 x XLR

Outputs
- 2 x XLR

DSP Features
• D-XSUB Processing Modes:
- NORMAL: Linear frequency response
- BOOST: Tight, focused low-end
- XTENDED LF: Enhanced sub-bass extension
- Selectable Crossover Frequencies: 80Hz, 100Hz, 120Hz
- Cardioid Mode: Reduces on-stage SPL and increases audience-facing output (requires two or more units)

Hardware & Mounting
• Pole Sockets:
- 1 x M20
- 1 x 35mm standard
- Enclosure Finish: Black
- Dimensions (W x H x D): 15.75" x 22.32" x 22.44"

Other
- Cooling: Passive
- Power Source: Standard IEC AC cable
- Accessories: Power Cable
