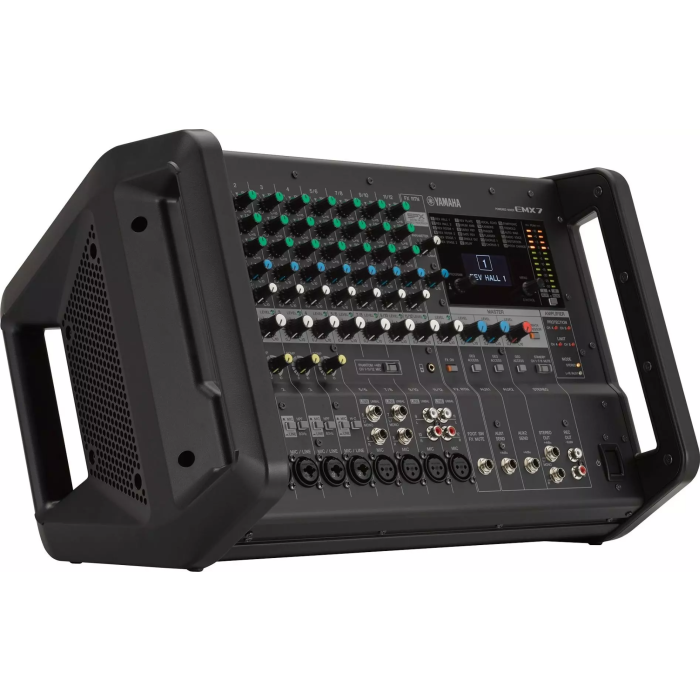

Yamaha EMX7 12-Input Powered Mixer W/ Dual 710 Watt Amp

$944.99

In stock

SKU

YAM-EMX7

Brand New. Not available for curbside pickup. Online orders only.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Yamaha EMX7 12-Input Powered Mixer with Dual 710W Amplifier ? EMX7
The Yamaha EMX7 is a robust, portable powered mixer designed for live sound applications, offering a powerful Class-D amplifier with up to 710 watts per channel and a comprehensive feature set. With 12 inputs, onboard SPX digital effects, a Flex 9 Graphic Equalizer, speaker presets, and built-in feedback suppression, the EMX7 delivers professional performance in an easy-to-carry box-type chassis. Large handles and a durable metal body make it road-ready, while the universal power supply ensures consistent operation anywhere.

Features

Dual high-efficiency Class-D amplifiers with up to 710W per channel (4?)
12 input channels: 8 mono (MIC/LINE) + 4 stereo (LINE)
High-Z input on channel 4 for direct guitar or bass connection
Onboard SPX digital effects with 24 professional programs
Flex 9 Graphic Equalizer for detailed sound shaping
Built-in feedback suppressor for clear, feedback-free audio
Yamaha speaker presets for quick, optimized setup
Rugged metal chassis with large handles for portability and protection
Universal power supply for stable performance worldwide
Optional rack-mount kit and foot switch available

Specifications

General
- Model: EMX7
- Type: Powered Mixer
- Amplifier Type: Class-D
- Net Weight: 9.5 kg (20.9 lbs)
- Operating Temperature: 0°C to +40°C

Dimensions
- Width: 465 mm (18-5/16")
- Height: 308 mm (12-1/8")
- Depth: 325 mm (12-13/16")

Power Output
- @4? (CEA2006, 1kHz THD+N <10%): 710W + 710W
- @4? (CEA2006, 1kHz THD+N <1%): 600W + 600W
- @8? (CEA2006, 1kHz THD+N <10%): 500W + 500W
- @8? (CEA2006, 1kHz THD+N <1%): 400W + 400W

I/O
- Inputs: 12 total ? 8 Mono (MIC/LINE), 4 Stereo (LINE)
- Outputs: Speakers (A, B), AUX1 Send, AUX2 Send, Stereo Out (L/R), Rec Out (L/R)
- Phantom Power: +48V
- Foot Switch: Effect Mute On/Off

Channel Functions
- PAD: 30 dB (CH1?4)
- Hi-Z: Supported (CH4)
- HPF: 80 Hz, -12 dB/oct. (CH1?3)
- COMP: 1-knob COMP (CH1?4)
- EQ High: 10 kHz ±15 dB (Shelving)
- EQ Mid: 2.5 kHz ±15 dB (Peaking)
- EQ Low: 100 Hz ±15 dB (Shelving)

Performance
- Frequency Response: Input to Speakers +1 dB/-3 dB (40 Hz?20 kHz)
- Total Harmonic Distortion: MIC/LINE (CH1?4) to Speakers ? 0.1% @10W (40 Hz?20 kHz), 0.04% @65W (1 kHz)
- Hum & Noise: EIN -117 dBu, Output Noise -66 dBu (Speakers), -80 dBu (Stereo Out/AUX)
- Crosstalk: -85 dB (1 kHz)

Onboard Processors
- DSP: SPX Algorithm (24 programs)
- Additional Processing: Feedback suppressor, Graphic equalizer, Speaker processor

Protection Circuits
- Load Protection: DC-fault
- Amplifier Protection: Overheat, Overcurrent, Integral power protection
- Power Supply Protection: Overheat, Overcurrent

Power
- Requirements: AC 100?240V, 50/60Hz
- Consumption: 45W (Idle), 250W (1/8 Power)

Included Accessories
- Owner?s Manual
- Technical Specifications
- AC Power Cord (2.5m)

Options
- Foot Switch: FC5
- Rack-Mount Brackets: RK-EMX7
