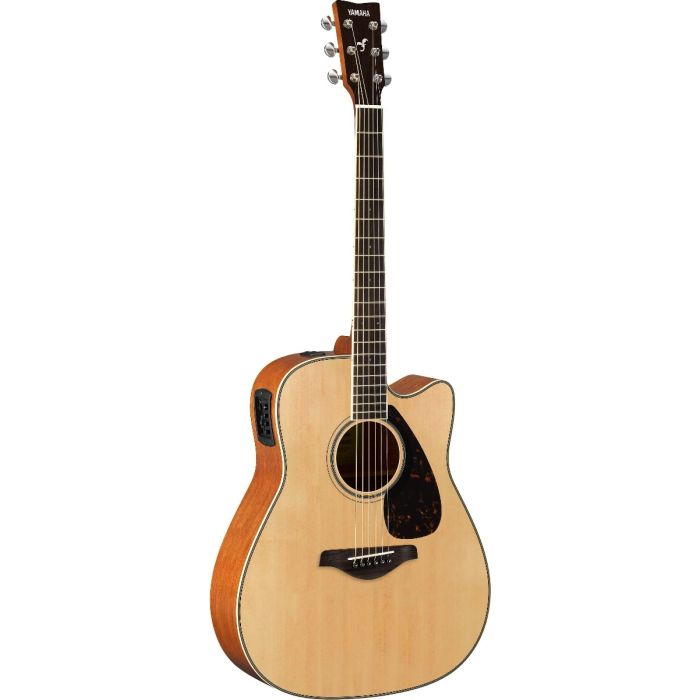

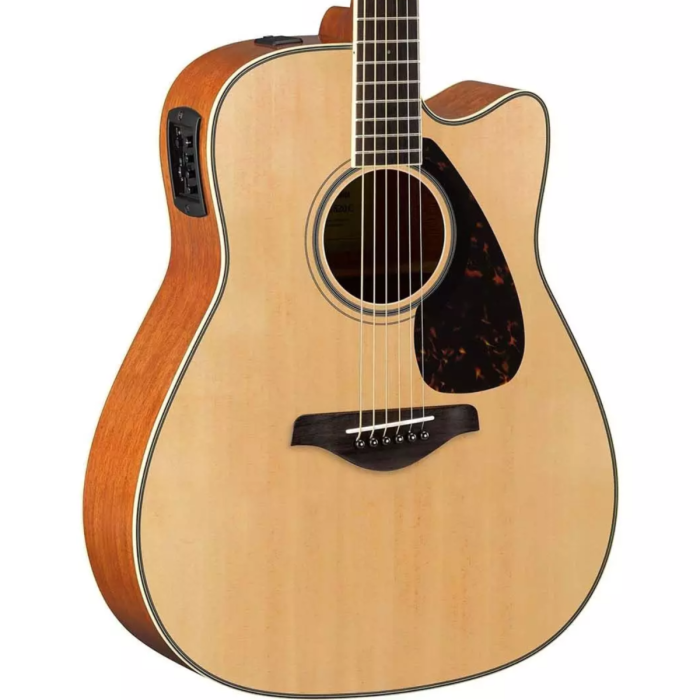

Yamaha FGX820C Acoustic-Electric Guitar

Derived from FG820 which has the solid spruce top and mahogany back/sides, FGX820C has a cutaway body and the electric system. Yamaha's proprietary under-saddle piezo pickup and System66 analog preamp ensure the solid plugged-in performance.

Features

• Cutaway dreadnought body for upper fret access
• Solid spruce top with mahogany back and sides
• Scalloped bracing for a louder, richer acoustic tone
• System66 preamp with built-in tuner and 3-band EQ
• Die-cast chrome tuners and cream body binding

Specifications

General
- Body Shape: Traditional Western Cutaway
- Scale Length: 650 mm (25 9/16”)
- Total Length: 1038 mm (40 7/8”)
- Body Length: 505 mm (19 7/8”)
- Body Width: 412 mm (16 1/4”)
- Body Depth: 100–118 mm (3 15/16”–4 5/8”)
- Weight: Approx. 4.6 lbs (not officially listed; typical for model)

Body
- Top Material: Solid Spruce
- Back Material: Mahogany
- Side Material: Mahogany
- Bracing: Scalloped
- Body Binding: Cream
- Sound Hole Inlay: Black + White
- Pickguard: Tortoise Pattern (Black for BL color variation)
- Body Finish: Gloss

Neck
- Neck Material: Nato
- Neck Finish: Matte
- Fingerboard Material: Rosewood or Walnut
- Fingerboard Radius: R400 mm (15 3/4”)
- Number of Frets: 20
- Nut Width: 43 mm (1 11/16”)
- String Spacing: 11 mm

Hardware
- Bridge Material: Rosewood or Walnut
- Saddle Material: Urea
- Nut Material: Urea
- Bridge Pins: Black ABS with White Dot
- Tuners: Die-Cast Chrome (TM29T)

Electronics
- Electronics: SYSTEM66 + SRT Piezo Pickup
- Controls: Volume / 3-Band EQ / Tuner / Mid Frequency
- Connections: LINE OUT

Strings & Accessories
- Strings: Yamaha FS50BT or D'Addario EXP11
- Included Accessories: Hex Wrench
