Yamaha Hi-Spec Drum Trigger Module Used In The Dtx10K-M And Dtx10K-X

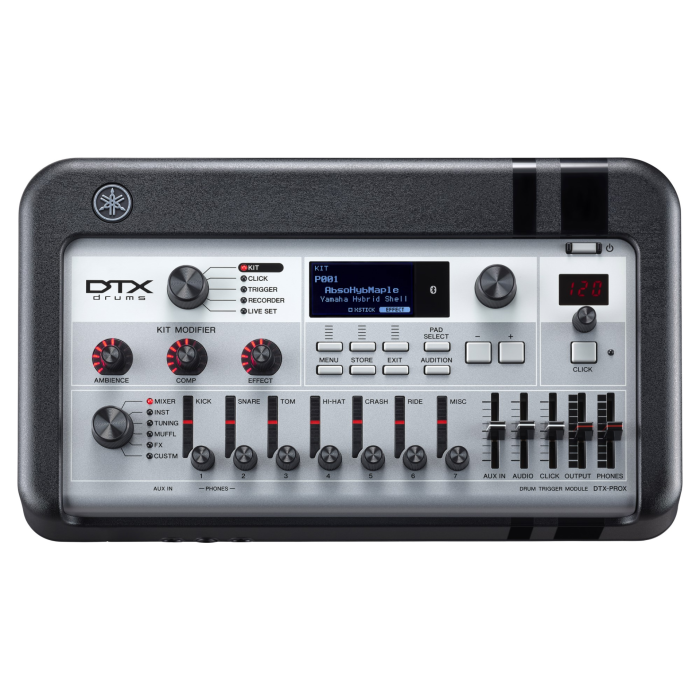

Yamaha DTX-PROX Hi-Spec Drum Trigger Module – Used in DTX10K-M and DTX10K-X
The Yamaha DTX-PROX is a flagship drum trigger module that blends premium, real-sampled drum sounds with cutting-edge control features designed for professional drummers. Built for everything from home practice to live performance and studio recording, it delivers high-definition sound, intuitive operation, and unmatched customization. With KIT MODIFIER knobs, LED rotary faders, and advanced connectivity, the DTX-PROX puts complete control of your drumming creativity at your fingertips.
Features
- Flagship drum trigger module for the Yamaha DTX10 Series
- Real, high-quality sampled drum sounds with natural room ambience
- KIT MODIFIER knobs for instant tone shaping
- LED rotary faders for intuitive control and live setup recall
- 8 individual outputs, dual AUX inputs, and comprehensive routing matrix
- Bluetooth audio streaming and USB audio/MIDI connectivity
- Professional-grade headphone amplifier for crystal-clear monitoring
- Advanced training functions with 37 preset songs and 10 practice modes
- Compatible with Yamaha Rec’n’Share app for recording and sharing performances
- Includes Cubase AI recording software
Specifications
General
- Model: DTX-PROX
- Series: DTX10 Series
- Type: Drum Trigger Module
- Weight: 2 kg (4 lbs 7 oz)
Dimensions
- Width: 342 mm (13-7/16")
- Height: 196 mm (7-11/16")
- Depth: 66 mm (2-5/8")
Sound Engine
- Maximum Polyphony: 256 notes
- Drum Kits: 70 preset, 200 user
- Voices: 733 total
- Effects: For each instrument – EQ / Compressor / Transient / Insertion; For each kit – Ambience / Effect 1 / Effect 2 / Master Comp / Master Effect; Overall – Master EQ / Phones EQ
Metronome & Timing
- Click Sets: 30
- Tempo Range: 30–300 BPM (Tap Tempo supported; Voice Guide)
- Time Signatures: 1/4–16/4, 1/8–16/8, 1/16–16/16
- Subdivisions: Accents, quarter, eighth, sixteenth notes, and eighth-note triplets
Training Functions
- Modes: 10
- Preset Songs: 37
- User Songs: 1
Audio & Recording
- Import Limit: 1,000 files
- Maximum Loadable Sample Time: 50 min 40 sec mono / 25 min 20 sec stereo (44.1 kHz, 16-bit)
- Recorder: Internal – 90 sec max; USB Flash Drive – 90 min max per file (WAV format)
Connectivity
- DC IN: 12V
- Headphones: Standard stereo jack ×1, stereo mini jack ×1
- AUX IN: Stereo mini jack ×1, stereo standard jack ×1
- Main Outputs: L/Mono, R
- Individual Outputs: 1/2, 3/4, 5/6, 7/8
- USB: USB to Device, USB to Host
- MIDI: In ×1, Out ×1
- Trigger Inputs: 10 stereo jacks (max 14 pads with Y-cables)
- Bluetooth: Audio (availability varies by country)
Included Accessories
- AC Adapter (PA-150 or equivalent), Owner’s Manual, Module Holder, Module Holder Wing Bolts ×4, Cubase AI Download Info
