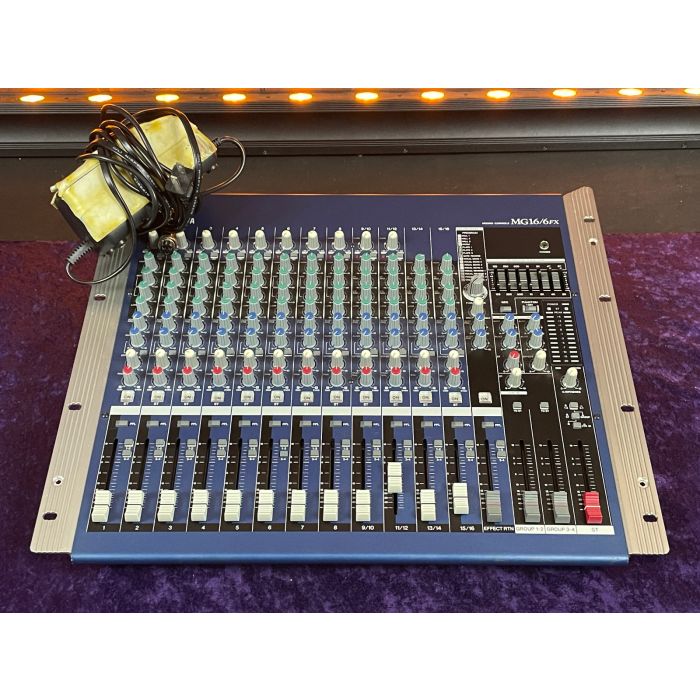

Yamaha MG16/6FX - 16 Channel Passive Rackmount Mixer with Effects SN0120
PRE-OWNED
Authorized Dealer
Super Fast Same Day Shipping
Overall Excellent Condition. Tested and Working Perfectly.
16 Input Channels
Eight mono microphone/line inputs and four
stereo line inputs. Two of the stereo inputs also
offer mono microphone input capability.
Six Buses (Stereo and Two Group Pairs)
10 Low-noise,
High-precision Mic Preamps
Ten high-performance head amplifiers offer
superior performance with any dynamic or
condenser microphone.
Phantom Power
All ten mic preamps feature switchable phantom
power for phantom-powered studio condenser
microphones. A single switch turns phantom
power on or off for all 10 channels.
Insert I/O
Add compressors, EQ, or other signal-processing
gear to the mono channels as required via insert
I/O patch points.
Internal Digital Effects & 7-band Stereo GEQ
Yamaha digital signal
processing is widely
respected as the finest
in the industry. In
the MG16/6FX you
get a complete effects
system with a range
of 16 superb reverb
and delay effects built right in. There’s also a
7-band stereo graphic equalizer for flexible
overall response shaping control.
The MG16/6FX features two pairs of stereo
group buses and outputs that can be used for
convenient channel grouping, in addition to the
main stereo bus.
3-band Mid-sweep Channel EQ & HPF
Smooth, “musical-response” 3-band equalizers
with a sweepable mid-band on all input channels.
All mono microphone input channels also
feature a switchable high-pass filter that can be
used to cut out unwanted low-frequency noise.
Three Aux Sends & Stereo Aux Return
Each input channel has three auxiliary sends –
one post-fader “Effect” send, one switchable for
pre- or post-fader operation, and one pre-fader
send – affording plenty of flexibility for external
signal processing and monitoring. A stereo
auxiliary return is also provided.
Illuminated Switches
Illuminated ON (ST buss assign), PFL (Pre
Fader Listen), and phantom-power switches
provide easy visual confirmation of critical
console settings.
