Yamaha Montage M6 2Nd Gen 61-Key Flagship Synthesizer With Fsx Action
Brand New. Not available for curbside pickup. Online orders only.

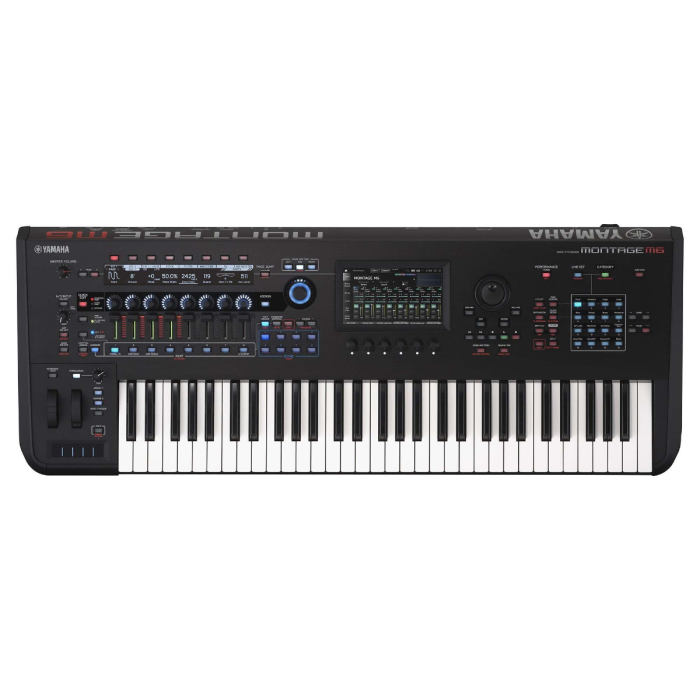

Yamaha MONTAGE M6 2nd Gen 61-Key Flagship Synthesizer with FSX Action (MONTAGE M6)
The Yamaha MONTAGE M6 is a flagship synthesizer designed for pianists, keyboardists, and sound designers seeking next-level expression and sonic power. With a total of 400-note polyphony across three unique synthesis engines (AWM2, FM-X, and AN-X), MONTAGE M6 delivers sophisticated dynamic control and seamless integration in both live and studio environments. Packed with premium controls, real-time performance features, and a DAW-mirroring Expanded Softsynth Plugin (E.S.P.), this is the centerpiece of any modern setup.
Features
- 61-key FSX keyboard with initial touch and channel aftertouch
- 400-note polyphony: AWM2 (256), FM-X (128), AN-X (16)
- AN-X engine delivers dynamic analog-style sound creation
- Seamless Sound Switching (SSS) for smooth patch transitions
- Enhanced hands-on control with dedicated keyboard, part, and scene functions
- Over 3,300 performances and 10,000+ arpeggios
- 7" touchscreen with second LCD for instant parameter feedback
- Expanded Softsynth Plugin (E.S.P.) recreates the synth in your DAW
- 10 GB preset wave memory and 3.7 GB user space
- Built-in USB audio/MIDI interface with up to 32 stereo outputs
Specifications
Dimensions
- Width: 1,037 mm (40-13/16")
- Height: 131 mm (5-3/16")
- Depth: 396 mm (15-9/16")
Weight
- Net Weight: 15.3 kg (33 lbs 12 oz)
- Packing Box Dimensions: 1,223 x 259 x 482 mm (48-1/8" x 10-3/16" x 19")
Keyboard
- Number of Keys: 61
- Key Type: FSX Keyboard
- Initial Touch: Yes
- Aftertouch: Yes (Channel)
Sound Engine
- Tone Generator: Motion Control Synthesis Engine
- AWM2: Up to 128 elements
- FM-X: 8 operators, 88 algorithms
- AN-X: 3 oscillators + 1 noise
- Maximum Polyphony: AWM2 - 256, FM-X - 128, AN-X - 16
- Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (Stereo A/D, Stereo USB)
Wave Memory
- Preset Waveform Memory: 10 GB (converted to 16-bit linear format)
- User Waveform Memory: 3.7 GB
- Performances: 3,369
Filters & Effects
- Filter Types: 18
- Reverb: 12 types
- Variation: 88 types
- Insertion A: 88 types
- Insertion B: 89 types
- A/D Part Insertion: 83 types
- Master Effects: 26 types
- EQ: 5-band Master EQ, 3-band 1st Part EQ, 2-band 2nd Part EQ
Controllers
- Master Volume
- A/D Input Gain Knob
- Pitch Bend Wheel
- Modulation Wheel
- Ribbon Controller
- Control Sliders: 8
- Control Knobs: 8
- Super Knob
- Display Knobs: 6
- Portamento Knob
- Data Dial
- Assignable Switches: 2
- MSEQ Trigger Switch
- Portamento Switch
- Keyboard Hold Switch
- Ribbon Controller Hold Switch
Display
- Main Display: 7" TFT Color Wide VGA LCD Touchscreen
- Secondary Display: 512 x 64 Full-dot LCD
Connectors
- USB TO DEVICE: 2 ports
- USB TO HOST: 1 port
- MIDI: IN, OUT, THRU
- Foot Controller Inputs: 2
- Foot Switch Inputs: Sustain, Assignable
- Balanced Main Outputs: L/MONO, R (6.3 mm TRS)
- Balanced Assignable Outputs: L, R (6.3 mm TRS)
- Headphones Output: 6.3 mm stereo phone jack
- A/D Audio Inputs: L/MONO, R (6.3 mm)
USB Audio Interface
- Sampling Frequency 44.1 kHz: Input - 6 channels (3 stereo), Output - 32 channels (16 stereo)
- Sampling Frequency 44.1–192 kHz: Input - 6 channels (3 stereo), Output - 8 channels (4 stereo)
Sequencer & Recording
- Note Capacity: Approx. 130,000 notes per Song/Pattern
- Storage Size: Approx. 520,000 notes (for Patterns), Approx. 520,000 notes (for Songs)
- Note Resolution: 480 ppq
- Tempo Range: 5–300 BPM
- Patterns: 128
- Pattern Tracks: 16
- Pattern Recording Type: Real-time replace, real-time overdub
- Songs: 128
- Song Tracks: 16 sequence tracks, Tempo track, Scene track
- Song Recording Type: Real-time replace, real-time overdub, real-time punch in/out
- Sequence Formats: MONTAGE original format, SMF formats 0 and 1
Arpeggio
- Simultaneous Parts: Up to 8
- Preset Types: 10,922 or more
- User Types: 256
Power
- Power Consumption: 36 W
Accessories
- Included: AC Power Cord, Quick Guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M Download Information
Live Sets
- Preset: 128+
- User: 2,048
