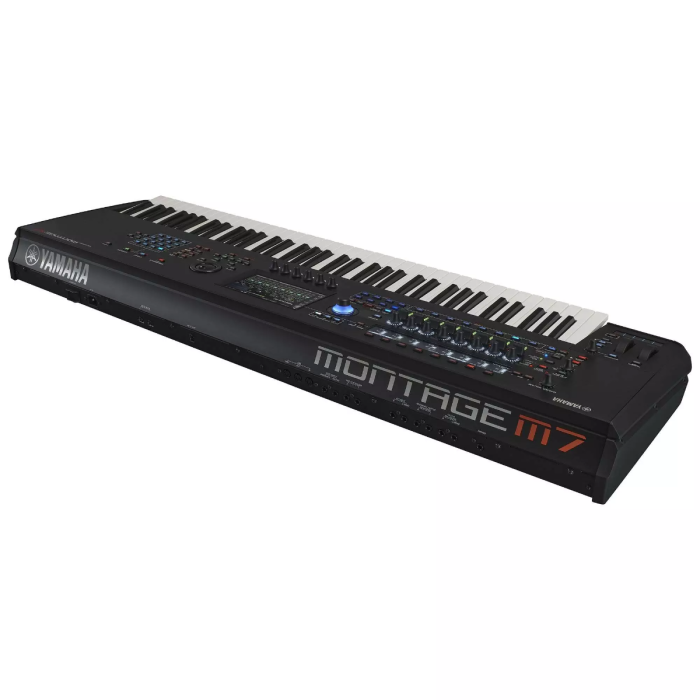

Yamaha Montage M7 2Nd Gen 76-Key Flagship Synthesizer With Fsx Action

Yamaha MONTAGE M7 2nd Gen 76-Key Flagship Synthesizer with FSX Action (MONTAGE M7)
The Yamaha MONTAGE M7 brings next-level expressiveness to synthesists, keyboardists, and stage performers with 76 semi-weighted keys and a powerhouse triple-engine sound architecture. Built to blur the line between stage and studio, the MONTAGE M7 delivers 400-note polyphony, Seamless Sound Switching, and deep DAW integration through the Expanded Softsynth Plugin (E.S.P.). It combines analog-style synthesis, advanced motion control, and modern USB connectivity in one commanding instrument.

Features

• 76-key FSX keyboard with channel aftertouch
• 400-note total polyphony powered by AWM2, FM-X, and AN-X synthesis engines
• AN-X engine provides rich analog modeling with dynamic controls
• Seamless Sound Switching for smooth, uninterrupted transition
• 3,369 built-in performances and over 10,000 arpeggios
• Expanded Softsynth Plugin (E.S.P.) for full DAW mirroring
• Multi-display layout featuring 7” color touchscreen and second LCD
• High-end DSP effects, performance EQ, and audio interface with 32 stereo outs

Specifications

Dimensions
- Width: 1,244 mm (49")
- Height: 131 mm (5-3/16")
- Depth: 396 mm (15-9/16")

Weight
- Net Weight: 17.6 kg (38 lbs 13 oz)
- Packing Box Dimensions: 1,430 x 259 x 482 mm (56-5/16" x 10-3/16" x 19")

Keyboard
- Number of Keys: 76
- Key Type: FSX Keyboard
- Initial Touch: Yes
- Aftertouch: Yes (Channel)

Sound Engine
- Tone Generator: Motion Control Synthesis Engine
- AWM2: Up to 128 elements
- FM-X: 8 operators, 88 algorithms
- AN-X: 3 oscillators + 1 noise
- Maximum Polyphony: AWM2 - 256, FM-X - 128, AN-X - 16
- Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (Stereo A/D, Stereo USB)

Wave Memory
- Preset Waveform Memory: 10 GB (converted to 16-bit linear format)
- User Waveform Memory: 3.7 GB
- Performances: 3,369

Filters & Effects
- Filter Types: 18
- Reverb: 12 types
- Variation: 88 types
- Insertion A: 88 types
- Insertion B: 89 types
- A/D Part Insertion: 83 types
- Master Effects: 26 types
- EQ: 5-band Master EQ, 3-band 1st Part EQ, 2-band 2nd Part EQ

Controllers
- Master Volume
- A/D Input Gain Knob
- Pitch Bend Wheel
- Modulation Wheel
- Ribbon Controller
- Control Sliders: 8
- Control Knobs: 8
- Super Knob
- Display Knobs: 6
- Portamento Knob
- Data Dial
- Assignable Switches: 2
- MSEQ Trigger Switch
- Portamento Switch
- Keyboard Hold Switch
- Ribbon Controller Hold Switch

Display
- Main Display: 7" TFT Color Wide VGA LCD Touchscreen
- Secondary Display: 512 x 64 Full-dot LCD

Connectors
- USB TO DEVICE: 2 ports
- USB TO HOST: 1 port
- MIDI: IN, OUT, THRU
- Foot Controllers: 2
- Foot Switches: Sustain, Assignable
- Balanced Main Outputs: L/MONO, R (6.3 mm TRS)
- Balanced Assignable Outputs: L, R (6.3 mm TRS)
- Headphones Output: 6.3 mm stereo
- A/D Audio Inputs: L/MONO, R (6.3 mm)

USB Audio Interface
- Sampling Frequency 44.1 kHz: Input - 6 channels (3 stereo), Output - 32 channels (16 stereo)
- Sampling Frequency 44.1–192 kHz: Input - 6 channels (3 stereo), Output - 8 channels (4 stereo)

Sequencer & Recording
- Note Capacity: Approx. 130,000 notes per Song/Pattern
- Storage Size: Approx. 520,000 notes (Patterns), Approx. 520,000 notes (Songs)
- Note Resolution: 480 ppq
- Tempo Range: 5–300 BPM
- Patterns: 128
- Pattern Tracks: 16
- Pattern Recording Type: Real-time replace, real-time overdub
- Songs: 128
- Song Tracks: 16 sequence tracks, Tempo track, Scene track
- Song Recording Type: Real-time replace, real-time overdub, real-time punch in/out
- Sequence Formats: MONTAGE original format, SMF formats 0 and 1

Arpeggio
- Simultaneous Parts: Up to 8
- Preset Types: 10,922 or more
- User Types: 256

Power
- Power Consumption: 36 W

Accessories
- Included: AC Power Cord, Quick Guide, Cubase AI Download Information, Expanded Softsynth - Plugin for MONTAGE M Download Information

Live Sets
- Preset: 128 or more
- User: 2,048
