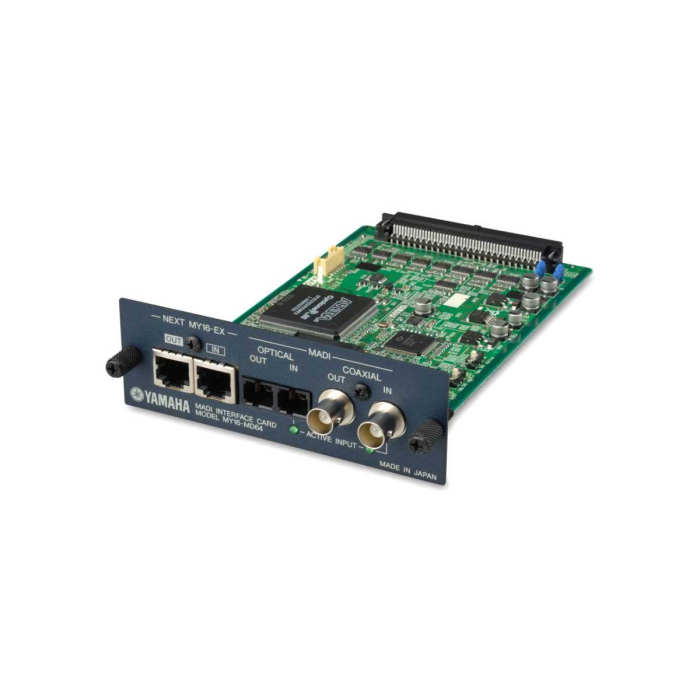

Yamaha MY16MD64 16-Ch, Madi I/O Card

Yamaha MY16-MD64 16-Channel MADI Interface Card for Digital Mixers and Signal Processors
The Yamaha MY16-MD64 is a professional-grade MADI interface card designed to integrate with compatible Yamaha digital mixing consoles and signal processors. Offering 16 channels of input and output with pristine 24-bit resolution, the MY16-MD64 is perfect for high-end live or studio digital audio systems. With BNC, optical, and RJ45 connectivity, it’s highly versatile and expandable—capable of reaching up to 64 channels with the addition of MY16-EX cards.

Features

• 24-bit, 16-in/16-out MADI digital audio interface
• Expandable to 64-in/64-out with up to three MY16-EX cards
• 2 x BNC connectors and 2 x optical connectors for MADI I/O
• 2 x RJ-45 connectors for MY16-EX expansion
• Compact design for streamlined integration

Specifications

General
- Format: MADI
- Resolution: 24-bit
- Channel Count: 16-in / 16-out (Expandable to 64-in / 64-out with MY16-EX)

Connections
- MADI Coaxial: 2 x BNC
- MADI Optical: 2 x Optical
- Expansion: 2 x RJ-45 (for MY16-EX connection)

Dimensions
- Width: 120 mm (4.7")
- Height: 40 mm (1.6")
- Depth: 176 mm (6.9")
