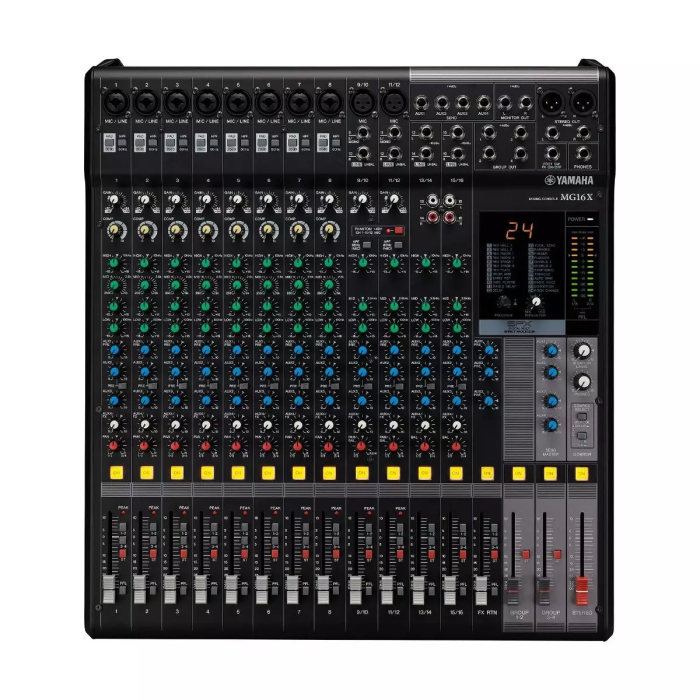

Yamaha MG16X CV 16-Input, 6-Bus Mixer with Effects – 12RU Rackmountable (MG16X CV)
The Yamaha MG16X CV combines professional mixing power with versatile effects processing in a durable, rackmountable chassis. With 16 input channels—including 8 mono mic/line inputs and 4 stereo line inputs—plus Yamaha’s acclaimed D-PRE preamps, 1-knob compressors, and onboard SPX digital effects, this console is ideal for live performance, studio work, or mobile production. A universal internal power supply and rugged metal construction make the MG16X CV a road-ready powerhouse.

Features

• 16-channel mixer with 8 mono mic/line and 4 stereo line inputs
• 4 GROUP buses + 1 stereo bus, and 4 AUX sends (including FX)
• D-PRE mic preamps with inverted Darlington circuit
• 1-knob compressors for fast dynamics control
• Built-in SPX digital effects with 24 programs
• PAD switch and 3-band EQ on mono channels
• +48V phantom power for condenser mics
• XLR balanced main outputs
• Internal universal power supply (100–240V)
• Rack-mount kit included
• Rugged metal chassis

Specifications

Mixing Capability
- Onboard Processors: SPX algorithm (24 programs), 1 parameter control, foot switch input (FX RTN CH on/off)

I/O
- Phantom Power: +48V
- Mono [MIC/LINE] Inputs: 8
- Mono/Stereo [MIC/LINE] Inputs: 2
- Stereo [LINE] Inputs: 2
- Stereo Out: 2
- Monitor Out: 1
- Phones Out: 1
- AUX Sends: 4
- Group Outs: 4

Bus Configuration
- Stereo: 1
- Group: 4
- AUX: 4 (includes FX)

Input Channel Functions
- PAD: 26 dB (Mono)
- High-Pass Filter: 80 Hz, 12 dB/oct (Mono/Stereo MIC only)
- Compressor: 1-knob (Gain/Threshold/Ratio)
- Compressor Threshold: +22 dBu to -8 dBu
- Compressor Ratio: 1:1 to 4:1
- Compressor Output Level: 0 dB to +7 dB
- Compressor Attack Time: ~25 ms
- Compressor Release Time: ~300 ms
- EQ High: ±15 dB, 10 kHz shelving
- EQ Mid: ±15 dB, 250 Hz – 5 kHz peaking (Mono); 2.5 kHz peaking (Stereo)
- EQ Low: ±15 dB, 100 Hz shelving
- Peak LED: Lights when post-EQ signal is within 3 dB of clipping
Level Meter: 2 x 12-segment LED (PEAK to -30 dB)

Performance
Total Harmonic Distortion:
- 0.03% @ +14 dBu (20 Hz–20 kHz), GAIN Min
- 0.005% @ +24 dBu (1 kHz), GAIN Min
- Frequency Response: +0.5 dB / -1.5 dB (20 Hz–48 kHz), GAIN Min
- Equivalent Input Noise: -128 dBu (Mono Input, Rs: 150Ω, GAIN Max)
- Residual Output Noise: -102 dBu (Stereo Out, Master Fader Min)
- Crosstalk: -78 dB

Power
- Power Requirements: AC 100–240V, 50/60 Hz
- Power Consumption: 30W

Dimensions
- Width: 444 mm (17.5")
- Height: 130 mm (5.1")
- Depth: 500 mm (19.7")

Weight
- Net Weight: 6.8 kg (15.0 lbs.)

Accessories
- Included: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
- Optional: Foot Switch (FC5)

Others
- Operating Temperature: 0°C to +40°C
