Yamaha MY8AD24 8-Ch, Line-Level Analog Input Card

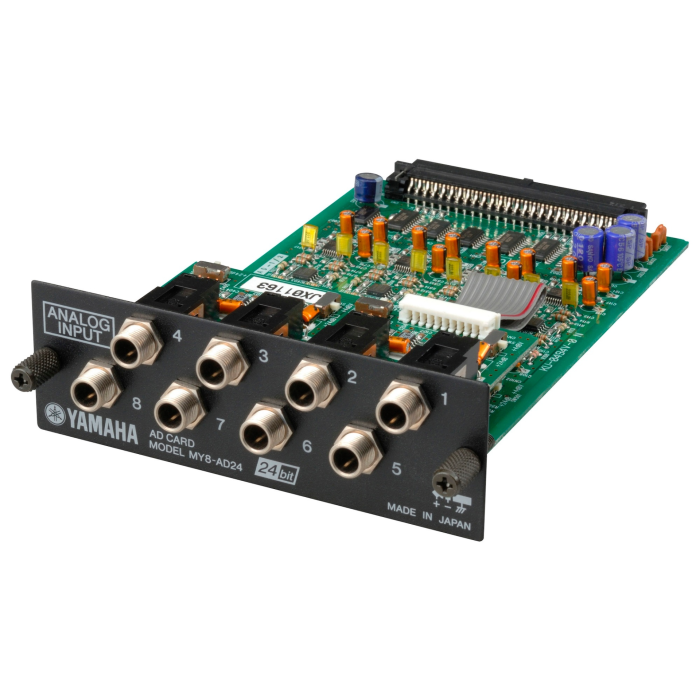

Yamaha MY8-AD24 8-Channel Analog-to-Digital Input Card for Digital Mixers and Signal Processors
The Yamaha MY8-AD24 is a high-resolution analog-to-digital input card designed for use with compatible Yamaha digital mixing consoles and signal processors. It provides eight balanced TRS phone jack inputs with 24-bit resolution, delivering professional-grade conversion quality in a compact form. Ideal for expanding your console’s analog input capability, the MY8-AD24 is a flexible and reliable solution for studio and live sound applications.

Features

• 24-bit resolution with 48kHz sampling rate
• 8 analog inputs via balanced TRS phone jacks
• Supports input levels up to +24dBu (default) or +4dBV
• Designed for seamless integration with Yamaha digital systems
• Compact and rack-friendly design

Specifications

General
- Format: Analog
- Resolution: 24-bit
- Sampling Frequency: 48kHz
- Channel Count: 8IN

Connectors
- Input Type: 8 x TRS phone jacks (balanced)
- Input Level (Nominal): +10dB (2.45V) or -10dBV (316mV)
- Max Input Level (Before Clip): +24dBu (12.3V) or +4dBV (1.58V)
- Input Impedance: 10kΩ
- Nominal Source Impedance: 600Ω
- Connector Configuration: Tip = HOT, Ring = COLD, Sleeve = GND

Dimensions
- Width: 120 mm (4.7")
- Height: 40 mm (1.6")
- Depth: 176 mm (6.9")
