Yamaha MY8AE96S 8-Ch, 96Khz Aes/Ebu I/O Card
Brand New. Not available for curbside pickup. Online orders only.

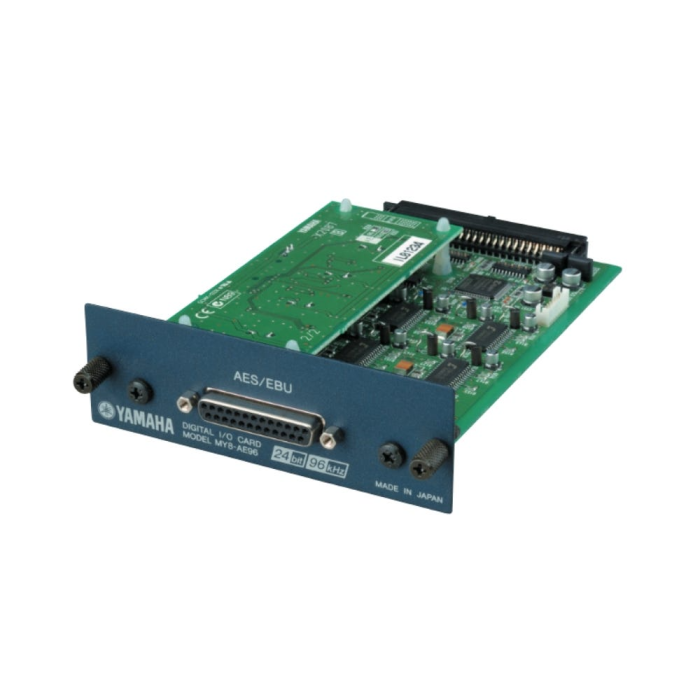

Yamaha MY8-AE96S 8-Channel AES/EBU Digital I/O Expansion Card with Sample Rate Conversion
The Yamaha MY8-AE96S is an 8-in/8-out AES/EBU digital I/O card designed for seamless integration with compatible Yamaha digital mixing consoles and signal processors. Supporting uncompressed 24-bit digital audio at sample rates up to 96kHz, the MY8-AE96S is equipped with onboard input sample rate converters, ensuring reliable synchronization in diverse setups. A single 25-pin D-sub connector handles all input and output channels, delivering efficient connectivity in a streamlined form factor.
Features
- 8-channel AES/EBU digital I/O with 24-bit resolution
- Supports sample rates of 44.1kHz, 48kHz, 88.2kHz, and 96kHz
- Built-in sample rate conversion on all inputs
- D-sub 25-pin connection for both input and output
- Designed for Yamaha digital consoles and processors
Specifications
General
- Format: AES/EBU
- Resolution: 24-bit
- Sampling Frequency: 44.1kHz / 48kHz / 88.2kHz / 96kHz
- Channel Count: 8IN / 8OUT (96kHz compatible)
Connectors
- Connector Type: 1 x D-sub 25-pin
- Input/Output Handling: 8 channels in, 8 channels out (via D-sub)
- Sample Rate Conversion: Included on all inputs
Dimensions
- Width: 120 mm (4.7")
- Height: 40 mm (1.6")
- Depth: 176 mm (6.9")
