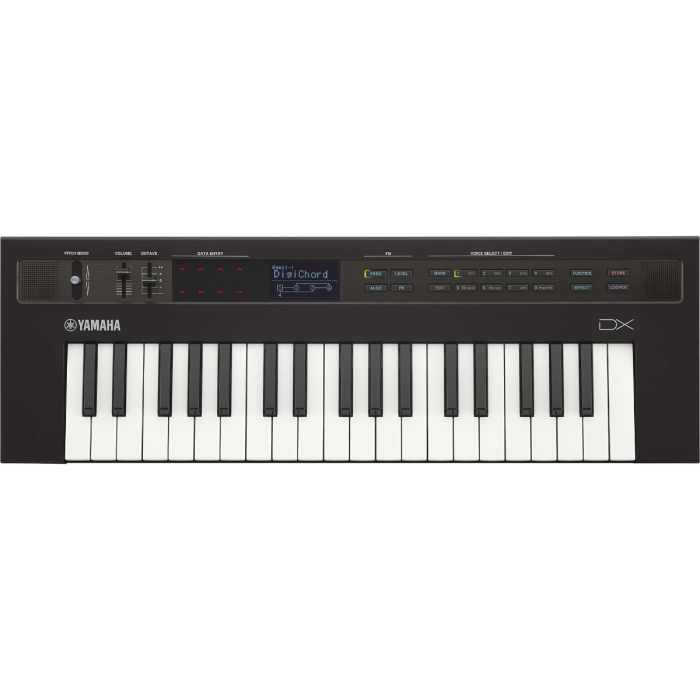

Yamaha REFACE DX Mobile-Mini Fm Synthesizer With Built-In Speakers

Yamaha Reface DX – Mobile Mini-Key FM Synthesizer with Touch Interface
The Yamaha Reface DX brings the power of classic FM synthesis into a compact, performance-ready form. This modern reimagining of the legendary DX series features a 4-operator FM engine, multi-touch controls, onboard effects, a phrase looper, and a premium-feel mini keyboard, all packed into a portable design. Whether you're programming textured pads, aggressive leads, or intricate soundscapes, the Reface DX gives you full hands-on control wherever inspiration strikes.

Features

• 4-Operator FM Sound Engine with 12 Algorithms
• Multi-touch interface with direct access to 4 simultaneous parameters
• HQ mini keyboard (37 keys) with initial touch
• Built-in phrase looper for capturing performance ideas
• Two programmable effects blocks with 7 types each
• 32 voice memory locations for saving and recalling sounds
• Onboard 2W stereo speakers and bass reflex port
• USB TO HOST for MIDI connectivity with computers or iOS devices
• AUX input for playing along with external audio sources
• Battery-powered operation (6 AA batteries for up to 5 hours)
• Compact and lightweight with a premium, road-ready build

Specifications

General
- Engine: FM sound engine with 4 operators and 12 algorithms
- Polyphony: 8 notes (maximum)
- Voice Memory: 32 locations
- Phrase Looper: Yes
- Effects: Distortion, VCM Touch Wah, Chorus, VCM Flanger, VCM Phaser, Delay, Reverb
- Auto Power Off: Yes

Keyboard
- Number of Keys: 37
- Type: HQ mini (High-Quality mini)
- Touch Response: Initial Touch

Connectivity
- DC IN: 12V
- Headphones: 1 x 1/4" stereo (6.3 mm)
- Audio Input: 1 x 1/8" AUX IN (3.5 mm stereo)
- Line Outputs: L/MONO, R (1/4" TS unbalanced)
- USB TO HOST: Yes
- MIDI I/O: Mini-DIN IN/OUT (breakout cable included)

Amplifiers and Speakers
- Amplifiers: 2 W + 2 W
- Speakers: 3 cm x 2

Power Supply
- Power Source: PA-130 power adapter or 6 x AA batteries
- Battery Life: Approximately 5 hours
- Power Consumption: 6 W

Size/Weight
- Width: 530 mm (20-7/8")
- Height: 60 mm (2-3/8")
- Depth: 175 mm (6-7/8")
- Weight: 1.9 kg (4 lbs. 3 oz.)

Included Accessories
- AC Adapter (may vary by region)
- MIDI Breakout Cable
- Owner’s Manual
- Warranty Document
