Yamaha SEQTRAX OR Orange And White Mobile Music Ideastation

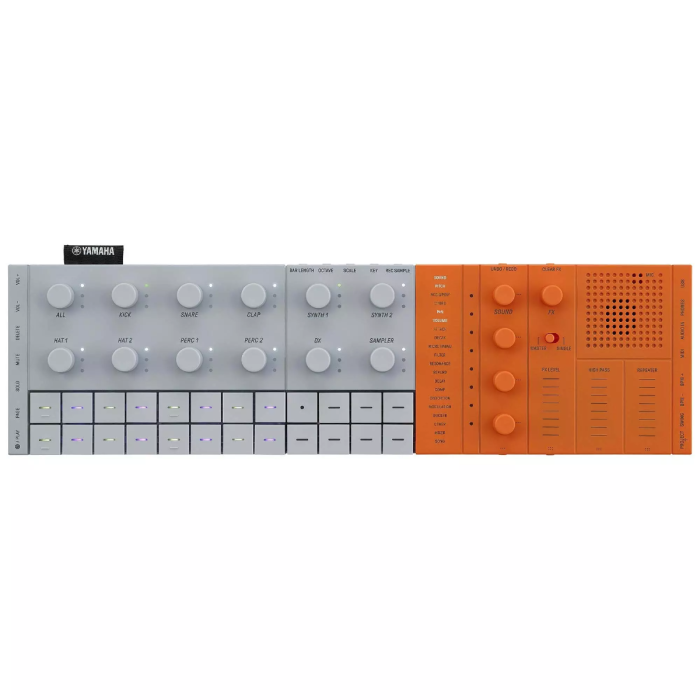

Yamaha SEQTRAK Music Creation Station – All-in-One Portable Synth, Sampler & Sequencer
Unleash your creativity anywhere with the Yamaha SEQTRAK – a compact, all-in-one music creation station built for the modern producer on the move. With lightning-fast workflow, dual sound engines, onboard sampling, and powerful connectivity options, SEQTRAK is made to capture, create, and connect from virtually anywhere. Whether you're crafting beats at home or performing live, SEQTRAK gives you everything you need – and more – in a lightweight, portable package.

Features

• All-in-one music creation system with drums, synths, sampler, and sequencer
• Dual sound engines: AWM2 (128-note polyphony) + FM (4-operator)
• Over 2,000 factory sounds with user expansion via SEQTRAK app
• Real-time sampling with effects and 44.1kHz/16-bit quality
• Compact, lightweight build with built-in speaker and microphone
• Rechargeable battery for 3–4 hours of portable use
• App-based visualizer with AR mode for live visuals
• Intuitive sequencer with up to 128 steps
• Seamless wireless & USB-C connectivity

Specifications

Tone Generator
- AWM2, FM (4 operators)

Maximum Polyphony
- AWM2: 128 voices
- FM: 8 voices

Wave Memory
- Preset: 800 MB (16-bit linear format)
- User: 500 MB

Effects
- Reverb: 12 types
- Delay: 9 types
- Master Effect: 85 types
- Single Effect: 85 types
- Master EQ: 5-band
- Track Filters: LP-HP per track

Track Types
- DRUM, SYNTH, DX, SAMPLER

Sequencer
- Max Steps: 128
- Number of Tracks: 11
- Projects: 8 (expandable via app)

Sounds
- Preset Sounds: 2,032
- Preset Sampler Sounds: 392 (expandable via app)

Connectivity
- USB: Type-C (power, MIDI, audio)
- Headphones: Stereo mini jack
- Audio In: Stereo mini jack
- MIDI In/Out: Included cable required
- USB Audio Interface: 44.1kHz, 24-bit (2 in / 2 out)
- Bluetooth MIDI (region-dependent)
- Wi-Fi sample transfer (region-dependent)

Built-in Components
- Speaker: 2.3 cm, 1 W
- Microphone: Internal MEMS mic

Power
- Battery: Rechargeable lithium-ion (2,100 mAh, 7.6 Wh)
- Power Delivery: 4.8V–5.2V / 1.5A+
- Consumption: 6 W
- Battery Life: 3–4 hours
- Charge Time: 3–5 hours

Dimensions & Weight
- Width: 343 mm (13-1/2")
- Height: 38 mm (1-1/2")
- Depth: 97 mm (3-13/16")
- Weight: 0.5 kg (1 lb 2 oz)

Box Dimensions
- Width: 420 mm (16-9/16")
- Height: 90 mm (3-9/16")
- Depth: 165 mm (6-1/2")

Included Accessories
- USB-C to USB-C cable
- Dedicated MIDI converter cable
- Quick Operation Guide
- Safety Guide
- Software
- SEQTRAK App (for sound editing, visualizer, project management)
