Yamaha StagePas 100BTR Portable 6.5" Battery Powered Pa With 3-Channel Mixer

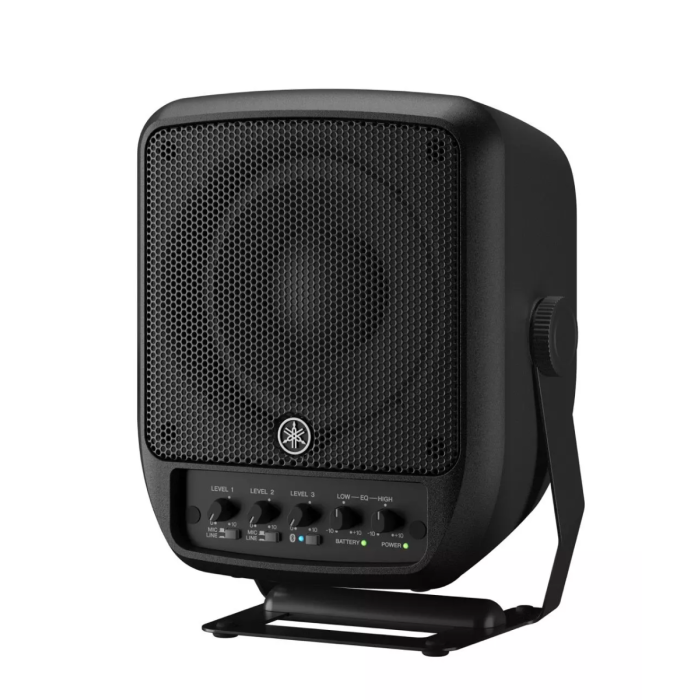

Yamaha StagePas 100BTR Portable Bluetooth PA System with Battery
Compact, lightweight, and impressively powerful, the Yamaha StagePas 100BTR is a fully portable PA system designed for musicians, speakers, and performers who need to project sound anywhere. With a built-in rechargeable lithium-ion battery, 100W of Class-D amplification, and a coaxial driver system, the StagePas 100BTR delivers rich, clear sound in a streamlined package. Its 3-channel mixer, Bluetooth connectivity, and integrated handle/stand make it ideal for impromptu gigs, street performances, and mobile setups without compromising quality.

Features

• 100W Class-D amplifier (93W LF + 7W HF dynamic power)
• Coaxial 2-way speaker with 6.5" LF and 1.4" HF compression driver
• FIR-X crossover filtering for smooth, accurate frequency response
• 3-channel mixer: 2 mic/line combo inputs + 1 stereo mini line input
• Hi-Z instrument input on Channel 2
• Integrated Bluetooth audio streaming (Ver. 5.0 with SBC/AAC support)
• 2-band master EQ
• Mix-out XLR output for daisy-chaining to other systems
• Rotatable bottom handle doubles as adjustable stand
• Lightweight plastic cabinet with natural convection cooling
• Rechargeable lithium-ion battery (up to 6 hours use per charge)
• Optional carrying bag (BAG-STP100) available

Specifications

General
- System Type: 2-way bi-amp powered speaker with mixer
- Amplifier Class: Class-D
- Output Power: 100W dynamic (LF: 93W, HF: 7W)
- Power Requirements: 100–240V, 50/60Hz
- Power Consumption: 10W (idle), 30W (1/8 power)

Mixer
- Channels: 3
Inputs:
- INPUT 1: Combo (mic/line)
- INPUT 2: Combo (mic/line, Hi-Z compatible)
- INPUT 3: Stereo mini (line)
- Outputs: XLR3-32 (mixed output from CH1–CH3)
- Bluetooth: Ver. 5.0, A2DP (SBC, AAC), Class 1
- EQ: 2-band master EQ
- Mix Out: Yes

Speaker
- Type: Coaxial speaker with compression driver
- Crossover: 1.8 kHz (FIR-X)
- Frequency Range (-10 dB): 70 Hz – 20 kHz
- Coverage: 90° horizontal x 90° vertical
- Max SPL: 120 dB (1m, on-axis)

Components:
- LF: 6.5" cone with 1.7" voice coil
- HF: 1" throat compression driver with 1.4" voice coil

Battery
- Type: Rechargeable lithium-ion battery pack
- Capacity: 60 Wh

Operating Time:
- Max 6 hours
- Approx. 5 hours at 1/16 power continuous
- Charging Time: Approx. 2.5 hours

Cabinet & Hardware
- Material: Plastic (Polypropylene)
- Handle: 1 rotatable handle (bottom-mounted)
- Mounting: 1 × 3/8" thread, 12 mm depth (centered in handle)

Dimensions & Weight
- Dimensions (W x H x D): 9.5" x 12.3" x 8.5" (239 x 310 x 215 mm)
- Weight: 12.1 lbs (5.5 kg, without AC adapter)

Included Accessories
- Power cord
- AC adapter (PA-500)

Optional Accessories
- Carrying Bag: Yamaha BAG-STP100
