Yamaha StagePas 200BTR Portable 8" Battery Powered Pa With 5-Input Mixer

$699.99
In stock
SKU
YAM-STAGEPAS200BTR

Brand New. Not available for curbside pickup. Online orders only.

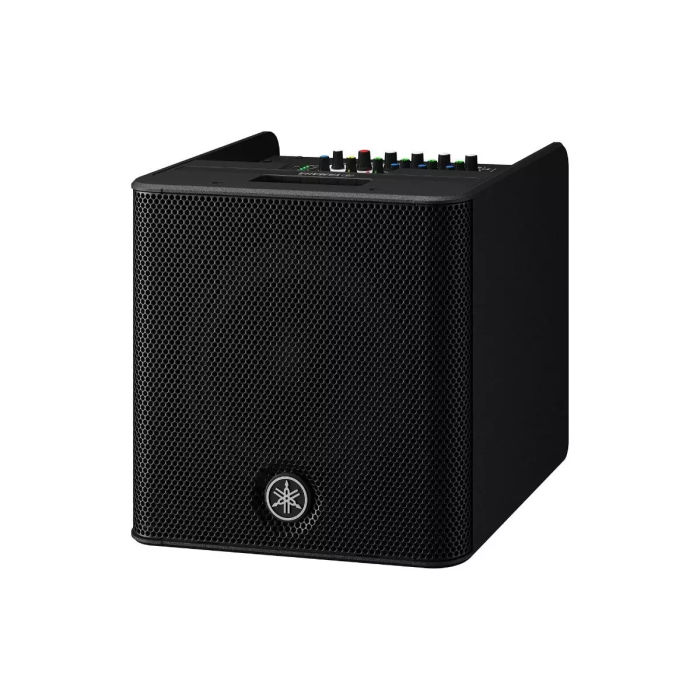

Yamaha StagePas 200BTR Portable 8" Battery Powered PA with 5-Input Mixer – STAGEPAS200BTR
Don’t let the compact 12" cube design fool you—the Yamaha StagePas 200BTR is a powerhouse. Combining pro-level sound pressure with a high-end coaxial transducer, this portable PA system delivers stunning clarity and depth far beyond what its minimalist footprint suggests. Whether you're playing in a remote outdoor setting or a small indoor venue, the StagePas 200BTR is engineered to impress, offering intuitive controls, robust connectivity, and battery-powered flexibility that lets you take the show anywhere.

This all-in-one system features a 5-channel digital mixer, a 180W Class-D amplifier (30W HF + 150W LF), Bluetooth streaming, and remote control via the dedicated StagePas Controller app. It includes a rechargeable lithium-ion battery with up to 10 hours of performance time—making it perfect for buskers, street performers, or any gig where power outlets are few and far between.

With onboard SPX digital effects, 1-knob EQs, and multiple input options including Hi-Z, the StagePas 200BTR is your grab-and-go solution for clear, powerful sound in any setting.

Features

  • 180W (HF: 30W + LF: 150W) Class-D amplifier
  • High-quality 1.4" HF + 8" LF coaxial compression driver
  • 5-channel digital mixer (3 mono mic/line + 1 stereo line)
  • 1-knob EQ and presets for fast and easy tone shaping
  • Built-in SPX digital effects: reverb, delay, chorus
  • Multi-band compressor with selectable output "MODE" (Speech/Music/Club)
  • Hi-Z instrument input for direct guitar or bass connection
  • Bluetooth 5.0 streaming for wireless audio playback
  • Remote control via StagePas Controller app (iOS/Android)
  • Includes rechargeable lithium-ion battery (up to 10 hours of performance)
  • Rubber stand allows tilt-back at 30° or 60° angles
  • 35mm pole mount socket for standard speaker stands
  • Lightweight, compact ABS enclosure with top handle
  • Optional carry case: CASE-STP200

Specifications

General
- Model: STAGEPAS200BTR
- Type: 2-way Bi-amp powered speaker with built-in mixer
- Amplifier Class: Class-D
- Power Output (Dynamic): 180W (LF: 150W, HF: 30W)
- Cooling: Natural convection (fanless)

Mixer
- Channels: 5 total (Mono x3, Stereo x1)
- Input Functions: Hi-Z (CH2/3), 1-knob EQ/Preset (CH1-3/ST)
- Output Functions: MODE (Speech/Music/Club)
- Onboard DSP: SPX digital reverb (4 programs), delay, chorus

Inputs/Outputs
- Inputs: 3 x mic/line (mono), 1 x stereo/mono line
- Outputs: Monitor/Link out x1
- Bluetooth: Version 5.0, A2DP (SBC, AAC), Class 1

Speaker Components
- LF Driver: 8" cone, 2.0" voice coil
- HF Driver: 1" throat compression driver, 1.4" voice coil
- Crossover Frequency: 2.0 kHz
- Frequency Response (-10dB): 60 Hz – 20 kHz
- Maximum SPL (1m, on axis): 125 dB
- Coverage Angle: Horizontal 90°, Vertical 90°
- Speaker Type: Coaxial with compression driver

Battery
- Type: Rechargeable Lithium-ion
- Capacity: 79.92 Wh (2700 mAh, 29.6 V)
- Operating Time: Up to 10 hours (8 hours continuous at 1/16 power)
- Charging Time: Approx. 4 hours

Physical
- Cabinet Material: ABS plastic
- Handle: Top x1
- Floor Monitor Angles: 30° or 60°
- Pole Mount: 35mm socket (side-mounted)
- Dimensions (W x H x D): 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
- Weight: 12.5 kg (27.6 lbs, including battery)

Accessories & Options
- Included: Power cord x1, Battery x1
- Optional: CASE-STP200 Carry Case
