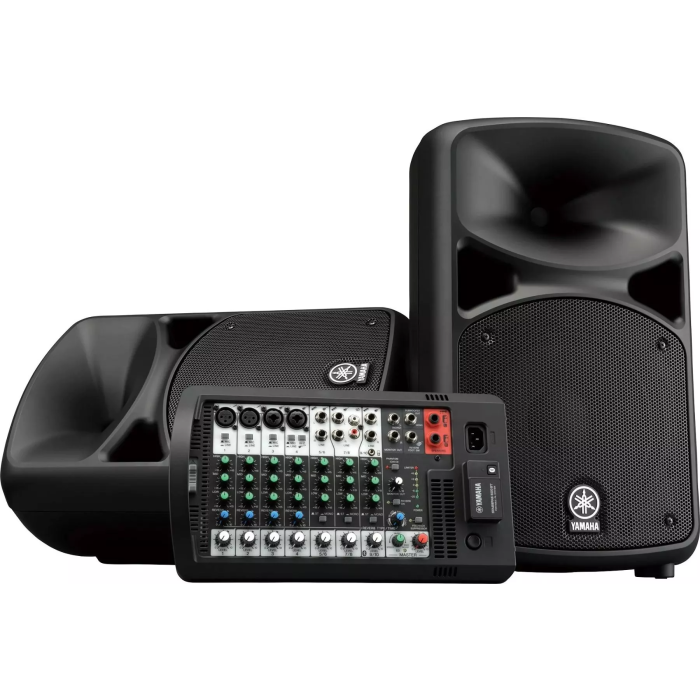

Yamaha StagePas 600BT Bluetooth Portable Pa System

Yamaha StagePas 600BT Bluetooth Portable PA System
The Yamaha StagePas 600BT is a powerful, portable PA system designed for performers, presenters, and mobile sound professionals. Featuring a 680-watt amplifier, a detachable 10-channel mixer, and a pair of high-quality 10" passive speakers, this all-in-one system delivers rich, full-range sound in a compact and convenient package. With onboard Bluetooth streaming, SPX digital reverbs, a feedback suppressor, and Yamaha’s 1-Knob Master EQ™ with virtual bass boost, the StagePas 600BT makes setup fast and hassle-free — so you can focus on your performance.

Features

• 680W total power output (340W + 340W dynamic)
• Detachable 10-channel mixer with 4 mono and 3 stereo input channels
• Two 10" high-quality passive speakers
• Bluetooth audio streaming (Ver. 4.1, A2DP v1.2)
• 1-Knob Master EQ™ with virtual bass boost
• SPX digital reverbs (4 types with parameter control)
• Onboard feedback suppressor
• 3-band EQ per channel (High, Mid, Low)
• Hi-Z input for instruments (CH4)
• Phantom power (+30V on CH1 and CH2)
• Monitor and subwoofer outputs with auto HPF
• Optional footswitch control for reverb
• Includes speaker cables, power cord, ferrite cores, cover panel, and mounting accessories

Specfications

General
- System Type: Powered mixer with 2 passive speakers
- Power Output: 680W (340W + 340W dynamic), 560W (280W + 280W continuous)
- Power Requirements: 100–240V, 50/60 Hz
- Power Consumption: 35W (idle), 100W (1/8 power)

Mixer
- Channels: 10
- Inputs: 4 mono mic/line, 6 mono / 3 stereo line
- Input Features: Hi-Z switch (CH4), ST/MONO switch (CH5/6–9/10)
- Output Features: Feedback suppressor, 1-Knob Master EQ™
- Phantom Power: +30V (CH1, CH2)
- Bluetooth: Ver. 4.1, A2DP v1.2, ~33 ft range
- Optional Footswitch: Yamaha FC5 (for reverb on/off)
- Onboard FX: SPX digital reverb (4 programs, adjustable parameters)

Channel EQ
- High: Shelving @ 8 kHz
- Mid: Peaking @ 2.5 kHz
- Low: Shelving @ 100 Hz

Outputs
- Speakers Out: L, R
- Monitor Out: L/Mono, R
- Subwoofer Out: Mono (with auto high-pass filter)

Speakers
- Type: Two-way bass-reflex

Components:
- LF: 10" cone
- HF: 1.4" voice coil compression driver
- Frequency Response (-10dB): 55 Hz – 20 kHz
- Coverage: H 90° / V 60°
- Max SPL: 129 dB (1m on-axis)
- Floor Monitor Angle: 50°
- Pole Socket: 34.8–35.2 mm w/ StageLok™

Dimensions
- Speaker (each): 13.2" x 21.5" x 12.6" (W x H x D)
- Mixer: 13.7" x 7.8" x 5.3" (W x H x D)

Weight
- Total: 56.4 lbs
- Each Speaker: 24 lbs
- Mixer: 8.4 lbs

Included Accessories
- Cover panel
- 2 x 6m speaker cables
- Power cord (2m)
- 12 x Non-skid pads
- 2 x Ferrite cores
- 2 x Cable ties

Optional Accessories
- Yamaha BMS10A mic stand adapter (for mixer mount)
- Yamaha FC5 footswitch (for reverb control)
