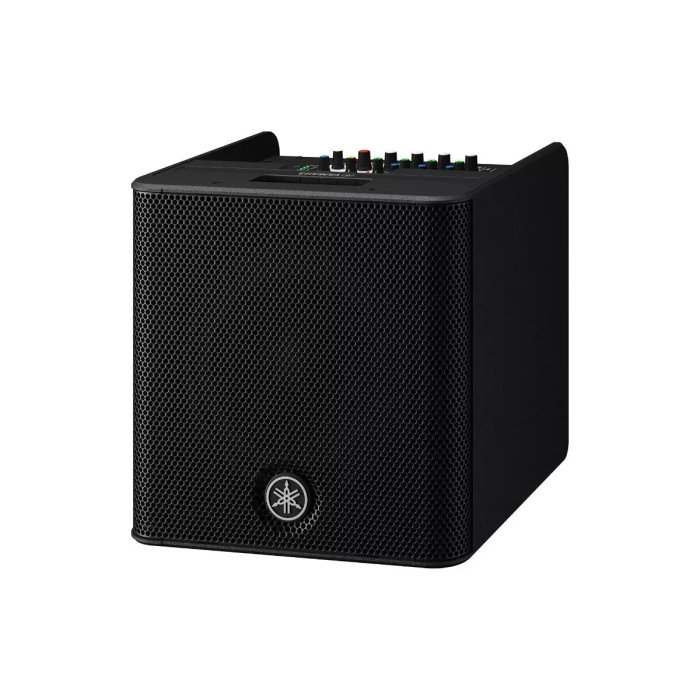

Yamaha StagePas200 Portable 8" Powered PA With 5-Input Mixer – STAGEPAS200
The Yamaha STAGEPAS 200 delivers premium sound quality and powerful performance in an ultra-compact, portable design. This system goes far beyond expectations for its size, combining a 180W Class-D amplifier, an 8" coaxial compression driver, and an intuitive 5-channel digital mixer. Whether used for small live performances, events, or presentations, the STAGEPAS 200 offers full-featured sound shaping tools, Bluetooth streaming, and remote control via the STAGEPAS Controller app—making it a highly capable all-in-one PA solution.

Features

• 180 W Class-D amplifier (LF: 150W, HF: 30W)
• 1.4” HF + 8” LF coaxial compression driver
• 5-channel digital mixer (3 mono mic/line + 1 stereo line)
• Multi-band compressor MODE (Speech/Music/Club)
• 1-knob EQ and presets per channel
• SPX digital reverb, delay, and chorus
• Hi-Z input compatibility
• Bluetooth streaming (Ver.5.0, A2DP, Class 1)
• STAGEPAS Controller app for remote control (iOS/Android)
• Monitor/Link out
• Rubber stand with 30° or 60° tilt
• Optional BTR-STP200 battery compatibility
• Optional CASE-STP200 carry case

Specifications

General
- Type: 2-way Bi-amp Powered Speaker with mixer
- Mixing Channels: 5 (Mono x3 + Stereo x1)
- Input Channel Functions: Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
- Output Channel Functions: MODE (SPEECH/MUSIC/CLUB)

Inputs/Outputs
- Inputs: Mono x3 (mic/line) + Stereo/Mono x1 (line)
- Outputs: Monitor/Link out x1
- Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
- Control: STAGEPAS Controller (iOS/Android app)

DSP / Effects
- Onboard Processing: SPX digital reverb (4 programs, parameter control), delay, chorus

Speaker
- Speaker Type: Coaxial speaker with compression driver
- Frequency Range: 60 Hz – 20 kHz (-10dB)
- Coverage Area: H90° x V90°
- Crossover: 2.0 kHz
- Max Output Level: 125 dB SPL (1m; on axis)

Components
- LF Driver: 8" Cone, 2.0" voice coil
- HF Driver: 1" throat compression driver, 1.4" voice coil

Amplifier
- Class: Class-D
- Power Rating: 180 W Dynamic (LF: 150 W, HF: 30 W)
- Cooling: Natural convection (no fan)
- Power Consumption: 10 W (Idle), 20 W (1/8 power)
- Power Requirements: 100-240 V 50/60 Hz, or 29.6 Vdc

Cabinet
- Material: Plastic (ABS)
- Handle: Top x1
- Pole Socket: Φ35 mm x1 (Side)
- Floor Monitor Angle: 30° or 60°
- Dimensions: 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
- Weight: 12.0 kg (26.5 lbs)

Accessories
- Included: Power cord x 1
- Optional: Battery (BTR-STP200), Carry case (CASE-STP200)
